SKF NNCF5015CV bearings
NNCF5015CV double row full complement cylindrical roller bearing

Inquiry for price
SKF double row full complement cylindrical roller bearing, NNCF design
Measurement system
Metric
Bore diameter
75.000 mm
Outside diameter
115.000 mm
Width
54.000 mm
Cr
251000 N
C0r
380000 N
Limiting speed
3200 r/min
Net weight
1.88 kg
Number of rows
2
Sealing
Without
Cage
Without
Bearing material
Steel
Rolling material
Steel
Tolerance class
Normal (PN)
Internal clearance
CN
Lubricant in bearing
None
Relubrication feature
With

In stock

Technical specification for SKF NNCF5015CV

SKF NNCF5015CV
Part Number NNCF5015CV
Description Double row full complement cylindrical roller bearing, with integral sealing and relubrication feature
Axial displacement capability In one direction
Number of rows 2
Cage Without
Number of flanges, outer ring 1
Number of flanges, inner ring 3

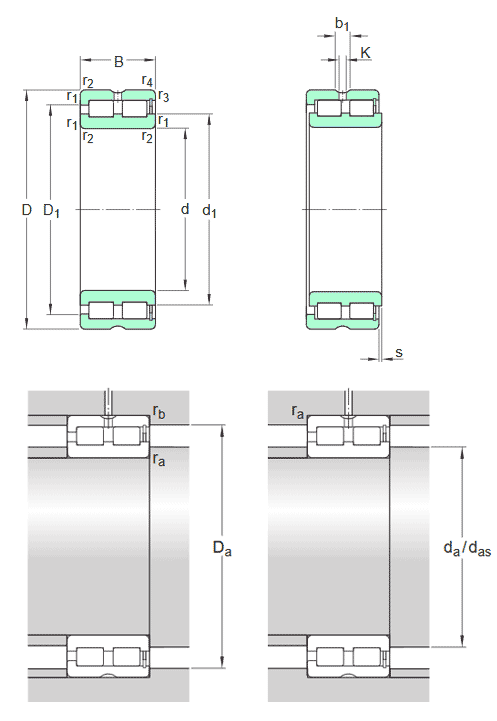

Dimensions
d 75.0 mm Bore diameter
D 115.0 mm Outside diameter
B 54.0 mm Width
d1 ≈ 89.0 mm Shoulder diameter inner ring
D1 ≈ 103.0 mm Shoulder diameter outer ring
b1 5.0 mm Width annular lubrication groove outer ring
K 3.5 mm Diameter lubrication hole (outer ring)
s max. 3.0 mm Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2 min. 1.1 mm Chamfer dimension (open bearings)
r3,4 min. 0.6 mm Chamfer dimension
Abutment Dimensions
da min. 81.0 mm Abutment diameter shaft
das 85.0 mm Abutment diameter shaft
Da max. 109.0 mm Abutment diameter housing
ra max. 1.0 mm Fillet radius
rb max. 0.5 mm Fillet radius
Calculation Data
C 251.0 kN Basic dynamic load rating
C0 380.0 kN Basic static load rating
Pu 49.0 kN Fatigue load limit
  3200.0 r/min Limiting speed
  2600.0 r/min Reference speed
kr 0.5 Minimum load factor
SKF double row full complement cylindrical roller bearing, NNCF design

SKF NNCF5015CV, Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the inner ring and one flange on the outer ring, NNCF design bearings can accommodate limited axial displacement in one direction. A retaining ring in the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

  • Bore diameter: 75.0 mm
  • Outside diameter: 115.0 mm
  • Width: 54.0 mm
  • Basic dynamic load rating: 251.0 kN
  • Basic static load rating: 380.0 kN
