SKF NJG2308VH bearings
NJG2308VH single row full complement cylindrical roller bearing

Inquiry for price
SKF single row full complement cylindrical roller bearing, NJG design
Measurement system
Metric
Bore diameter
40.000 mm
Outside diameter
90.000 mm
Width
33.000 mm
Cr
145000 N
C0r
156000 N
Limiting speed
3600 r/min
Net weight
1.02 kg
Number of rows
1
Sealing
Without
Cage
Without
Bearing material
Steel
Rolling material
Steel
Tolerance class
Normal (PN)
Internal clearance
CN
Lubricant in bearing
None
Relubrication feature
Without

In stock

Technical specification for SKF NJG2308VH

SKF NJG2308VH
Part Number NJG2308VH
Description Single row full complement cylindrical roller bearing, NJG design
Axial displacement capability In one direction
Radial internal clearance CN
Number of rows 1
Number of flanges, outer ring 2
Number of flanges, inner ring 1

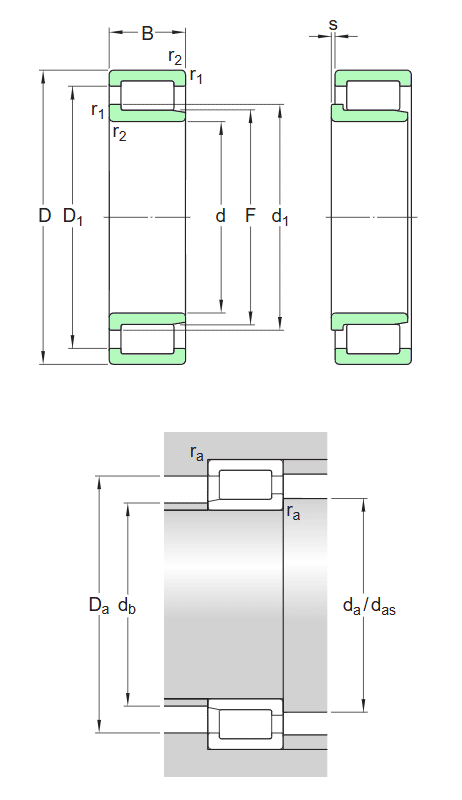

Dimensions
d 40.0 mm Bore diameter
D 90.0 mm Outside diameter
B 33.0 mm Width
d1 ≈ 59.1 mm Shoulder diameter inner ring
D1 ≈ 75.2 mm Shoulder diameter outer ring
F 51.15 mm Raceway diameter inner ring
s max. 2.4 mm Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2 min. 1.5 mm Chamfer dimension
Abutment Dimensions
da min. 49.0 mm Abutment diameter shaft
das 54.4 mm Abutment diameter shaft
db max. 49.0 mm Abutment diameter shaft
Da max. 81.0 mm Abutment diameter housing
ra max. 1.5 mm Fillet radius
Calculation Data
C 145.0 kN Basic dynamic load rating
C0 156.0 kN Basic static load rating
Pu 20.0 kN Fatigue load limit
  3600.0 r/min Limiting speed
  3000.0 r/min Reference speed
kr 0.35 Calculation factor
e 0.3 Limiting value
Y 0.4 Calculation factor
SKF single row full complement cylindrical roller bearing, NJG design

NJG2308VH, Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the outer ring and one on the inner ring, NJG design bearings can accommodate axial displacement in one direction. A self-retaining roller complement enables the bearing components to be separated, which facilitates mounting and enables the bearing components to be interchanged.

  • Bore diameter: 40.0 mm
  • Outside diameter: 90.0 mm
  • Width: 33.0 mm
  • Cage: Without
  • Radial internal clearance: CN
