SKF NCF3008CV bearings
NCF3008CV single row full complement cylindrical roller bearing
- Measurement system
- Metric
- Bore diameter
- 40.000 mm
- Outside diameter
- 68.000 mm
- Width
- 21.000 mm
- Cr
- 57200 N
- C0r
- 69500 N
- Limiting speed
- 6000 r/min
- Net weight
- 0.302 kg
- Number of rows
- 1
- Sealing
- Without
- Cage
- Without
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- Without
In stock
Technical specification for SKF NCF3008CV
| Part Number | NCF3008CV | |
|---|---|---|
| Description | Single row full complement cylindrical roller bearing, NCF design | |
| Axial displacement capability | In one direction | |
| Radial internal clearance | CN | |
| Number of rows | 1 | |
| Number of flanges, outer ring | 1 | |
| Number of flanges, inner ring | 2 | |

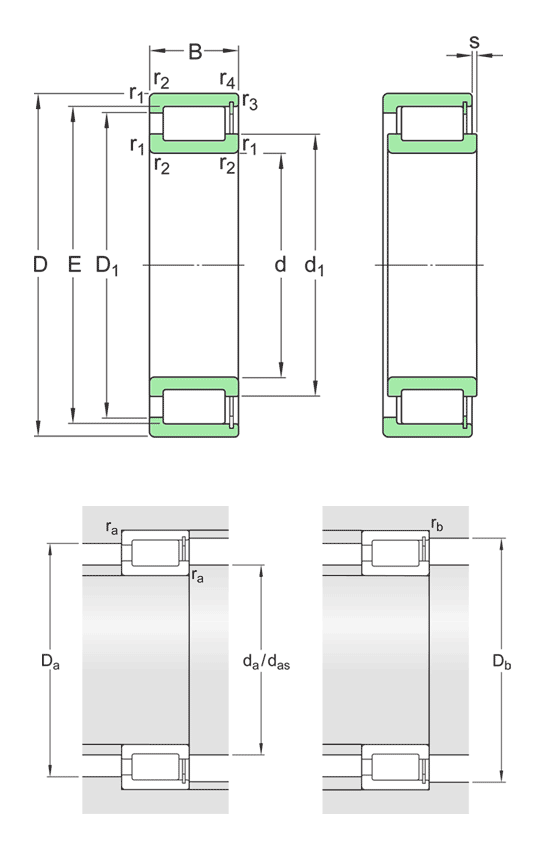

| Dimensions | ||
| d | 40.0 mm | Bore diameter |
| D | 68.0 mm | Outside diameter |
| B | 21.0 mm | Width |
| d1 | ≈ 50.0 mm | Shoulder diameter inner ring |
| D1 | ≈ 58.0 mm | Shoulder diameter outer ring |
| E | 61.74 mm | Raceway diameter outer ring |
| s | max. 2.0 mm | Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 | min. 1.0 mm | Chamfer dimension |
| r3,4 | min. 0.3 mm | Chamfer dimension |
| Abutment Dimensions | ||
| da | min. 45.0 mm | Abutment diameter shaft |
| das | 47.9 mm | Abutment diameter shaft |
| Da | max. 63.0 mm | Abutment diameter housing |
| Db | max. 65.0 mm | Abutment diameter housing |
| ra | max. 1.0 mm | Fillet radius |
| rb | max. 0.3 mm | Fillet radius |
| Calculation Data | ||
| C | 57.2 kN | Basic dynamic load rating |
| C0 | 69.5 kN | Basic static load rating |
| Pu | 8.15 kN | Fatigue load limit |
| 6000.0 r/min | Limiting speed | |
| 4800.0 r/min | Reference speed | |
| kr | 0.3 | Calculation factor |
| e | 0.3 | Limiting value |
| Y | 0.4 | Calculation factor |
NCF3008CV, Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
- Bore diameter: 40.0 mm
- Outside diameter: 68.0 mm
- Width: 21.0 mm
- Cage: Without
- Radial internal clearance: CN
