NTN NATV5/3AS bearings
NTN full-complement roller-type roller followers
- Measurement system
- Metric
- Bore diameter
- 5.000 mm
- Outside diameter
- 16.000 mm
- Width
- 12.000 mm
- Width, ourter ring
- 11.000 mm
- Width, inner ring
- 12.000 mm
- Cr
- 6500 N
- C0r
- 9350 N
- Limiting speed
- 16000 r/min
- Net weight
- 0.02 kg
- Number of rows
- 1
- Sealing
- Shield on both sides
- Cage
- Without
- Outer diameter type
- Spherical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
- Coating
- Without
In stock

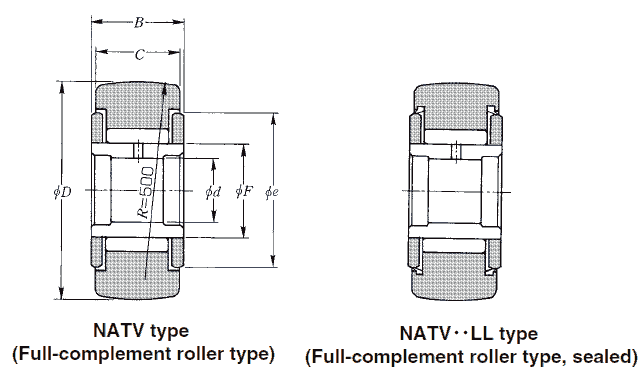

Technical specification for NTN NATV5/3AS
| Bearing number | NATV5/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | Full-complement roller-type roller followers | |
| d | 5 | Boundary dimensions mm |
| D | 16 | |
| B | 12 | |
| C | 11 | |
| e | 12 | |
| F | 8 | |
| Cr | 6500 N | Basic dynamic load rating |
| C0r | 9350 N | Basic static load rating |
| Track load capacity | 1080 N | Spherical outer ring |
| Limiting speed | 13000 r/min | Grease lubrication |
| 16000 r/min | Oil lubrication | |
| Mass | 0.02 kg | (approx.) |
NTN NATV5/3AS are full-complement roller-type roller followers; Bore diameter: 5 mm.
