NTN KRJ090LL bearings
KRJ090LL, NTN Ultra-Thin section ball bearings with double-seal, radial type
- Measurement system
- Inch
- Bore diameter
- 228.600 mm
- Outside diameter
- 247.650 mm
- Width
- 12.700 mm
- Cr
- 15200 N
- C0r
- 25700 N
- Net weight
- 0.535 kg
- Number of rows
- 12
- Sealing
- With
- Cage
- Brass
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
In stock
Technical specification for NTN KRJ090LL
| Bearing number | KRJ090LL | |
|---|---|---|
| Brand | NTN | |
| Type | Ultra-Thin Section Type Ball bearing With Double-seal, Radial type | |

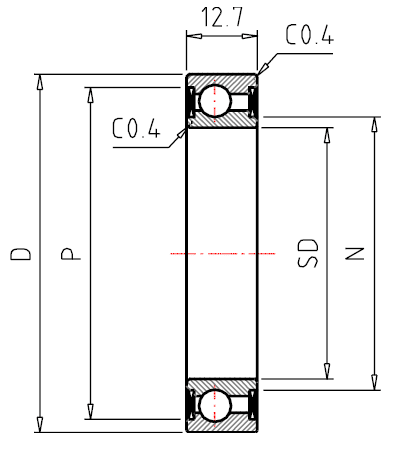

| d | 228.6 mm | Boundary dimensions |
| D | 247.65 mm | |
| B | 12.7 mm | |
| C | 0.4 mm | |
| Cr | 15.2 kN | Basic dynamic load rating, Radial |
| C0r | 25.7 kN | Basic static load rating, Radial |
| Cu | 0.72 kN | Fatigue load limit |
| N | 232.5 mm | Reference dimensions |
| P | 242.9 mm | |
| Mass | 0.535 kg | (approx.) |
NTN KRJ090LL ultra-thin section type ball bearings are bearings with an extremely thin design. KRJ090LL have seals on both sides
