NSK L17 bearings
NSK bearing L17, Magneto bearings, open type deep groove ball bearing
- Measurement system
- Metric
- Bore diameter
- 17.000 mm
- Outside diameter
- 40.000 mm
- Width
- 10.000 mm
- Cr
- 8100 N
- C0r
- 1500 N
- Limiting speed
- 20000 r/min
- Net weight
- 0.051 kg
- Number of rows
- 1
- Sealing
- Without
- Cage
- Pressed brass
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- None
In stock
Technical specification for NSK L17
| NSK Bearing Number | L17 | |
|---|---|---|
| Sealing | Open type | |
| Type | Deep groove ball bearings, Magneto bearings | |

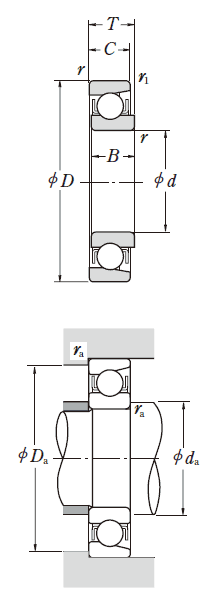

| d | 17 mm | Boundary Dimensions |
| D | 40 mm | |
| B,C,T | 10 mm | |
| r min. | 0.6 MM | |
| r1 min. | 0.3 mm | |
| Cr | 8100 N | Basic Load Ratings |
| C0r | 1500 N | |
| Speeds | 17000 r/min | Grease lubrication |
| 20000 r/min | Oil-bath lubrication | |
| da min. | 21 mm | Abutment and Fillet Dimensions |
| Da max. | 36 mm | |
| ra max. | 0.6 mm | |
| Weight | 0.129 kg | approx. |
NSK L17 bearings are open type deep groove ball bearings, Magneto bearings. The inner ring groove of L17 bearings is slightly shallower than that of deep groove bearings and the outer ring bore diameter on the side without a shoulder is cylindrical from the bottom. The outer ring of NSK L17 bearing may be separated, allowing easier mounting.
