NSK 6000ZZ bearings
NSK, Deep groove ball bearings, With Two Shielded
- Measurement system
- Metric
- Bore diameter
- 10.000 mm
- Outside diameter
- 26.000 mm
- Width
- 8.000 mm
- Cr
- 4550 N
- C0r
- 1970 N
- Limiting speed
- 30000 r/min
- Net weight
- 0.018 kg
- Number of rows
- 1
- Sealing
- Non-contact Shield on both sides
- Cage
- Steel sheet metal
- Bore type
- Cylindrical
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- None
In stock
Technical specification for NSK 6000ZZ
| Bearing Number | 6000ZZ |
|---|---|
| Sealing | ZZ |
| Net weight | 0.018 kg |

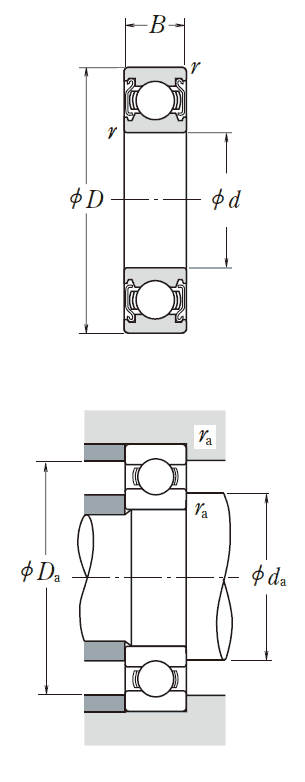

| Boundary Dimensions | |
| d | 10 mm |
| D | 26 mm |
| B | 8 mm |
| r min. | 0.3 mm |
| Basic Load Ratings | |
| Cr | 4.55 kN |
| C0r | 1.97 kN |
| Limiting Speeds | |
| Grease | 30000 min-1 |
| Abutment and fillet dimensions | |
| da | min. 12 mm |
| da | max. 13 mm |
| Da | max. 24 mm |
| ra | max. 0.3 mm |
| factors | |
| f0 | 12.4 |
6000ZZ, NSK, Deep groove ball bearings, With Two Shielded, Dimension: 10mm x 26mm x 8mm
- 60: 60 series
- 00: bore diameter 10 mm
- ZZ: With Two Shielded
