INA NKX10-Z-TV-XL bearings
INA needle roller/axial ball bearings NKX..-Z, axial component, single direction, with end cap
- Bore diameter
- 10.000 mm
- Outside diameter
- 19.000 mm
- Total width
- 23.000 mm
- Cr
- 7000 N
- C0r
- 7800 N
- Ca
- 10000 N
- C0a
- 14000 N
- Limiting speed
- 12400 r/min
- Net weight
- 39.0 g
- Measurement system
- Metric
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Lubricant in bearing
- Grease
In stock
Technical specification for INA NKX10-Z-TV-XL
| Part Number | NKX10-Z-TV-XL | |
|---|---|---|
| Description | Needle roller/axial ball bearings NKX..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication | |
| Sealing | Z | Bearing with end cap |
| Main Dimensions & Performance Data | ||
| Fw | 10 mm | Bore Diameter |
| D | 19 mm | Outside diameter |
| C | 23 mm | Heigth |
| Cr | 7000 N | Basic dynamic load rating, radial |
| C0r | 7800 N | Basic static load rating, radial |
| Ca | 10000 N | Basic dynamic load rating, axial |
| C0a | 14000 N | Basic static load rating, axial |
| Cur | 1330 N | Fatigue load limit, radial |
| Cua | 690 N | Fatigue load limit, axial |
| nG | 12400 1/min | Limiting speed |
| m | 39.0 g | Weight |

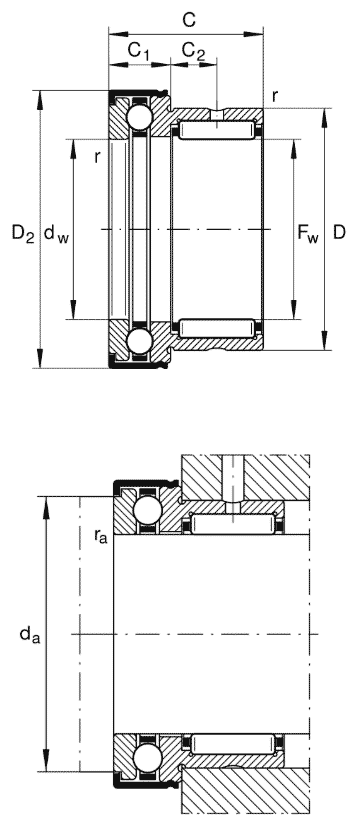

| Mounting Dimensions of NKX10-Z-TV-XL | ||
| da | 19.7 mm | Mounting dimension shaft shoulder |
| ra max | 0.3 mm | Maximum recess radius |
| Dimensions for NKX10-Z-TV-XL | ||
| D2 max | 25.2 mm | Maximum outerside diameter flange |
| C1 | 9 mm | Width of the axial brearing component |
| C2 | 6.5 mm | Distance to lubrication hole |
| dw | 10 mm | Bore diameter of shaft washer |
| rmin | 0.3 mm | Minimum chamfer dimension |
| Additional information | ||
| IR7X10X16-XL | Suitable inner rings IR | |
INA NKX10-Z-TV-XL Needle Roller / Axial Ball Bearing – Single Direction, With End Cap
INA NKX10-Z-TV-XL is a high-performance Needle Roller / Axial Ball Bearing from the NKX..-Z series, designed to accommodate combined radial and axial loads in compact applications. Featuring an axial component with single direction load support, this bearing is manufactured to DIN 5429 standards and supplied with an end cap for enhanced protection and performance.
Designed for grease lubrication, INA NKX10-Z-TV-XL provides reliable operation, high load carrying capacity, and smooth running performance in demanding industrial environments.
Product Specifications:
- Brand: INA
- Model: NKX10-Z-TV-XL
- Bearing Type: Needle Roller / Axial Ball Bearing (NKX..-Z Series)
- Standard: DIN 5429
- End Cap: With End Cap
- Lubrication: Suitable for Grease Lubrication
- Bore Diameter (ID): 10 mm
- Outside Diameter (OD): 19 mm
- Height (C): 23 mm
We supply genuine INA NKX10-Z-TV-XL bearings with competitive prices, reliable worldwide shipping, and professional customer support.
Looking for INA NKX10-Z-TV-XL bearing price, stock availability, or delivery time? Contact us today for a fast quotation. We welcome inquiries from distributors, OEM manufacturers, and industrial buyers worldwide.
