INA NKX10-TV-XL bearings
INA needle roller/axial ball bearings NKX, axial component, single direction, without end cap

Inquiry for price
INA needle roller/axial ball bearings NKX
Bore diameter
10.000 mm
Outside diameter
19.000 mm
Total width
23.000 mm
Cr
7000 N
C0r
7800 N
Ca
10000 N
C0a
14000 N
Limiting speed
12400 r/min
Net weight
35.87 g
Measurement system
Metric
Bearing material
Steel
Rolling material
Steel
Tolerance class
Normal (PN)
Lubricant in bearing
None

In stock

Technical specification for INA NKX10-TV-XL

NKX10-TV-XL INA
Part NumberNKX10-TV-XL
DescriptionNeedle roller/axial ball bearings NKX, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
Main Dimensions & Performance Data
Fw 10 mm Bore Diameter
D 19 mm Outside diameter
C 23 mm Heigth
Cr 7000 N Basic dynamic load rating, radial
C0r 7800 N Basic static load rating, radial
Ca 10000 N Basic dynamic load rating, axial
C0a 14000 N Basic static load rating, axial
Cur 1330 N Fatigue load limit, radial
Cua 690 N Fatigue load limit, axial
nG 12400 1/min Limiting speed
m 35.87 g Weight

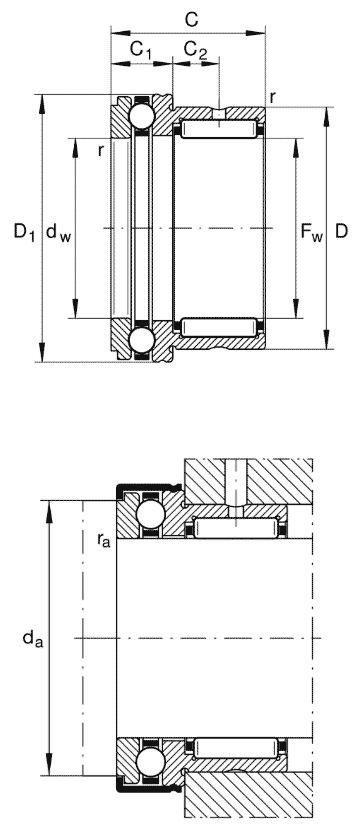

Mounting Dimensions of NKX10-TV-XL
da 19.7 mm Mounting dimension shaft shoulder
ra max 0.3 mm Maximum recess radius
Dimensions for NKX10-TV-XL
D1 max 24.1 mm Maximum outerside diameter flange
C1 9 mm Width of the axial brearing component
C2 6.5 mm Distance to lubrication hole
dw 10 mm Bore diameter of shaft washer
rmin 0.3 mm Minimum chamfer dimension
Additional information
  IR7X10X16-XL Suitable inner rings IR
INA needle roller/axial ball bearings NKX

INA NKX10-TV-XL Needle Roller / Axial Ball Bearing – Single Direction, Without End Cap

INA NKX10-TV-XL is a high-performance Needle Roller / Axial Ball Bearing from the NKX series, designed to accommodate combined radial and axial loads in compact applications. Featuring an axial component with single direction load support, this bearing is manufactured to DIN 5429 standards.

Designed for oil lubrication, INA NKX10-TV-XL provides reliable operation, high load carrying capacity, and smooth running performance in demanding industrial environments.

Product Specifications:

  • Brand: INA
  • Model: NKX10-TV-XL
  • Bearing Type: Needle Roller / Axial Ball Bearing (NKX Series)
  • Standard: DIN 5429
  • End Cap: Without End Cap
  • Lubrication: Suitable for Oil Lubrication
  • Bore Diameter (ID): 10 mm
  • Outside Diameter (OD): 19 mm
  • Height (C): 23 mm

We supply genuine INA NKX10-TV-XL bearings with competitive prices, reliable worldwide shipping, and professional customer support.

Looking for INA NKX10-TV-XL bearing price, stock availability, or delivery time? Contact us today for a fast quotation. We welcome inquiries from distributors, OEM manufacturers, and industrial buyers worldwide.
