IKO RNAST50R bearings
RNAST 50 R, Separable Roller Followers, Open type, Without inner ring
- Measurement system
- Metric
- Bore diameter
- 60.000 mm
- Outside diameter
- 90.000 mm
- Width
- 19.800 mm
- Cr
- 38900 N
- C0r
- 71700 N
- Net weight
- 500 g
- Number of rows
- 1
- Sealing
- Without
- Cage
- Steel sheet
- Outer diameter type
- Crowned outer ring
- Bearing material
- Steel
- Rolling material
- Steel
In stock
Technical specification for IKO RNAST50R
| Part Number | RNAST 50 R | |
|---|---|---|
| Brand | IKO | |
| Type | Separable Roller Followers, Without Inner Ring | |
| Out ring profile | Crowned outer ring | |
| Cage | Steel sheet | |
| Seal | Open type | |

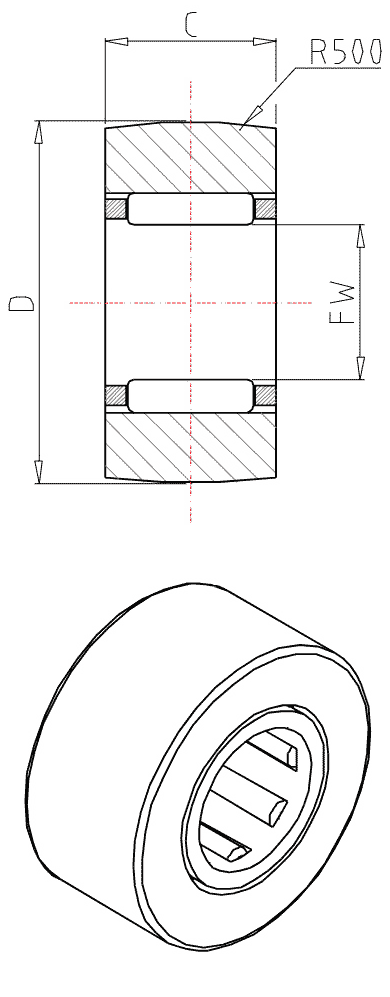

| Fw | 60 mm | Boundary dimensions |
| D | 90 mm | |
| C | 19.8 mm | |
| C | 38900 N | Basic dynamic load rating |
| C0 | 71700 N | Basic static load rating |
| Mass | 500 g | |
IKO RNAST 50 R Separable Roller Followers, Open Type, Without Inner Ring, Crowned outer ring, Bore diameter 60 mm; Outside diameter 90 mm; Width 19.8 mm.
