IKO RNAST40 bearings
RNAST 40, Separable Roller Followers, Open type, Without inner ring
- Measurement system
- Metric
- Bore diameter
- 50.000 mm
- Outside diameter
- 80.000 mm
- Width
- 19.800 mm
- Cr
- 35900 N
- C0r
- 61100 N
- Net weight
- 420 g
- Number of rows
- 1
- Sealing
- Without
- Cage
- Steel sheet
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
In stock
Technical specification for IKO RNAST40
| Part Number | RNAST 40 | |
|---|---|---|
| Brand | IKO | |
| Type | Separable Roller Followers, Without Inner Ring | |
| Out ring profile | Cylindrical outer ring | |
| Cage | Steel sheet | |
| Seal | Open type | |

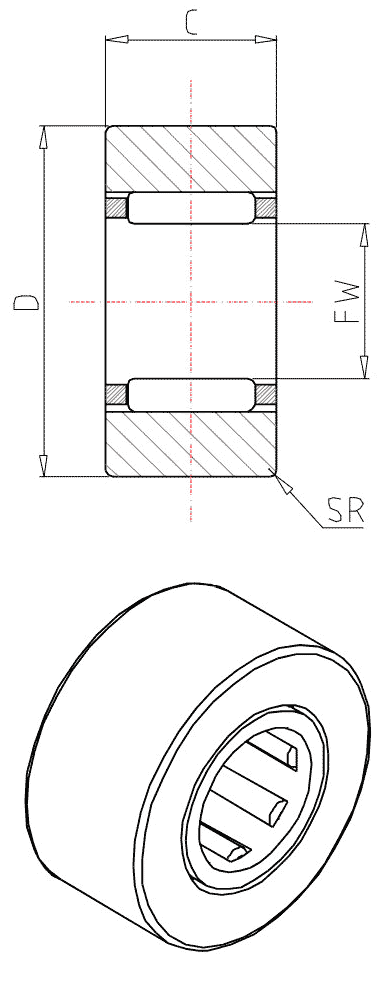

| Fw | 50 mm | Boundary dimensions |
| D | 80 mm | |
| C | 19.8 mm | |
| rs min. | 1.5 mm | |
| C | 35900 N | Basic dynamic load rating |
| C0 | 61100 N | Basic static load rating |
| Mass | 420 g | |
IKO RNAST 40 Separable Roller Followers, Open Type, Without Inner Ring, Cylindrical outer ring, Bore diameter 50 mm; Outside diameter 80 mm; Width 19.8 mm.
