IKO NUCF30BR bearings
NUCF30BR IKO Cylindrical Roller Cam Followers, With Stud Head Hex Hole
- Stud diameter
- 30.000 mm
- Outside diameter
- 80.000 mm
- Total width
- 100.000 mm
- Width, ourter ring
- 35.000 mm
- Cr
- 90300 N
- C0r
- 121000 N
- Net weight
- 1600 g
- Measurement system
- Metric
- Number of rows
- 2
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock
Technical specification for IKO NUCF30BR
| IKO PN. | NUCF30BR | |
|---|---|---|
| Stud diameter | 30 mm | |
| Mass (Ref.) | 1600 g | |

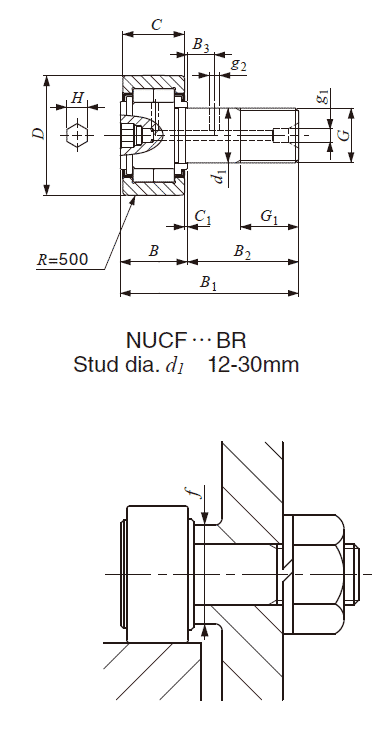

| D | 80 | Boundary dimensions mm |
| C | 35 | |
| d1 | 30 | |
| G | M30X1.5 | |
| G1 | 32 | |
| B | 37 | |
| B1 | 100 | |
| B2 | 63 | |
| B3 | 15 | |
| C1 | 1 | |
| g1 | 6 | |
| g2 | 4 | |
| H | 17 | |
| f min. | 45 mm | Mounting dimension |
| 438 N.m | Maximum tightening torque | |
| C | 90300 N | Basic dynamic load rating |
| C0 | 121000 N | Basic static load rating |
| 98300 N | Maximum allowable static load | |
NUCF30BR, IKO cylindrical roller cam followers are full complement type bearings incorporating double rows of full complement cylindrical rollers in the outer ring, and can withstand large radial loads. Additionally, the outer ring of NUCF30BR is guided by the outer ring shoulder and the end face of cylindrical rollers to the axial direction.
NUCF30BR, IKO, Stud diameter: 30 mm, Outer diameter: 80 mm, Total width: 100 mm.
