IKO CRH64VB bearings
CRH64VB IKO Inch Series Cam Followers, Full Complement, With Stud Head Hex Hole
- Stud diameter
- 50.800 mm
- Outside diameter
- 101.600 mm
- Total width
- 148.300 mm
- Width, ourter ring
- 51.150 mm
- Cr
- 142000 N
- C0r
- 317000 N
- Net weight
- 4960 g
- Measurement system
- Inch
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
- Coating
- Black oxide film treatment
In stock

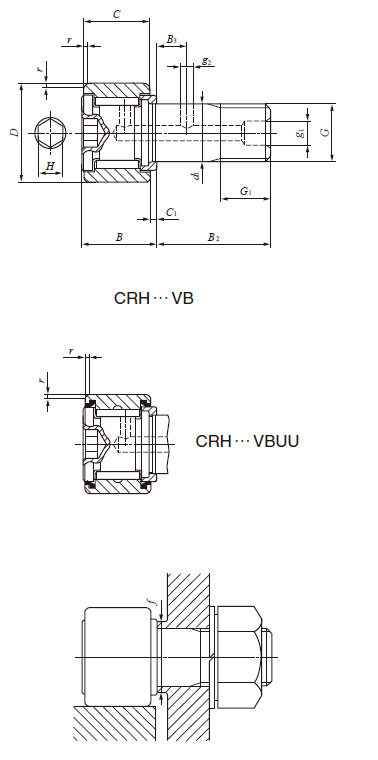

Technical specification for IKO CRH64VB
| IKO PN. | CRH64VB | |
|---|---|---|
| Stud diameter | 50.8 mm | |
| Mass (Ref.) | 4960 g | |
| D | 101.6 | Boundary dimensions mm |
| C | 51.15 | |
| d1 | 50.8 | |
| G UNF | 2-12UN | |
| G1 | 38.1 | |
| B max | 59.4 | |
| B2 | 88.9 | |
| B3 | 19.05 | |
| C1 | 1.588 | |
| g1 | 6.35 | |
| g2 | 3.175 | |
| H | 19.05 | |
| r | 2.381 | |
| f min. | 64.691 mm | Mounting dimension |
| 2190 N.m | Maximum tightening torque | |
| C | 142000 N | Basic dynamic load rating |
| C0 | 317000 N | Basic static load rating |
CRH64VB IKO inch series cam followers CRH has large load rating and is a heavy duty type with black oxide film treatment, Stud diameter: 50.8 mm, Outer diameter: 101.6 mm, width of outer ring: 51.15 mm.
