IKO CR30VB bearings
CR30VB IKO Inch Series Cam Followers, Full Complement, With Stud Head Hex Hole
- Stud diameter
- 19.050 mm
- Outside diameter
- 47.625 mm
- Total width
- 71.250 mm
- Width, ourter ring
- 25.400 mm
- Cr
- 35300 N
- C0r
- 55600 N
- Net weight
- 418 g
- Measurement system
- Inch
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock

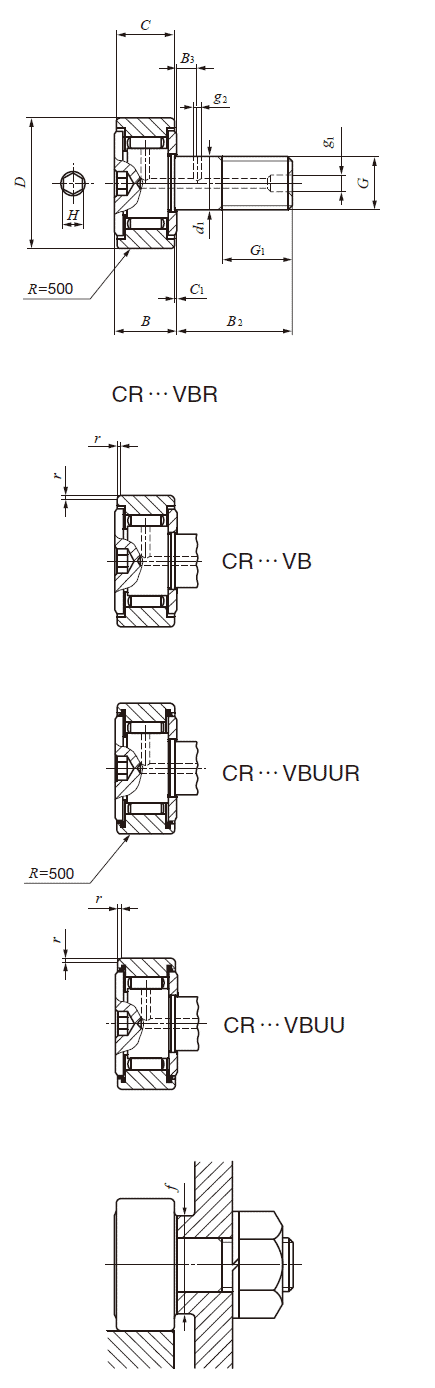

Technical specification for IKO CR30VB
| IKO PN. | CR30VB | |
|---|---|---|
| Stud diameter | 19.05 mm | |
| Mass (Ref.) | 418 g | |
| D | 47.625 | Boundary dimensions mm |
| C | 25.4 | |
| d1 | 19.05 | |
| G UNF | 3/4-16 | |
| G1 | 22.225 | |
| B max | 26.8 | |
| B2 | 44.45 | |
| B3 | 11.112 | |
| C1 | 0.794 | |
| g1 | 4.762 | |
| g2 | 3.969 | |
| H | 7.938 | |
| r | 1.588 | |
| f min. | 32.543 mm | Mounting dimension |
| 100 N.m | Maximum tightening torque | |
| C | 35300 N | Basic dynamic load rating |
| C0 | 55600 N | Basic static load rating |
CR30VB, IKO inch series cam followers CR, Stud diameter: 19.05 mm, Outer diameter: 47.625 mm, width of outer ring: 25.4 mm.
