IKO CFS4F bearings
CFS4F IKO Miniature Type Cam Followers, Stainless Steel Made, With Cage & Stud Head Hex Hole
- Stud diameter
- 4.000 mm
- Outside diameter
- 8.000 mm
- Total width
- 15.000 mm
- Width, ourter ring
- 5.000 mm
- Cr
- 897 N
- C0r
- 894 N
- Net weight
- 4 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- With
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Stainless steel
- Rolling material
- Stainless steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock
Technical specification for IKO CFS4F
| IKO PN. | CFS4F | |
|---|---|---|
| Stud diameter | 4 mm | |
| Mass (Ref.) | 4 g | |

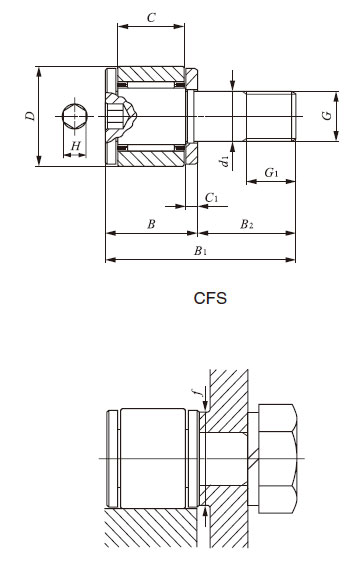

| D | 8 | Boundary dimensions mm |
| C | 5 | |
| d1 | 4 | |
| G | M4X0.7 | |
| G1 | 4 | |
| B | 7 | |
| B1 | 15 | |
| B2 | 8 | |
| C1 | 1 | |
| H | 1.5 | |
| f min. | 7.7 mm | Mounting dimension |
| 77.7 N.m | Maximum tightening torque | |
| C | 897 N | Basic dynamic load rating |
| C0 | 894 N | Basic static load rating |
| 894 N | Maximum allowable static load | |
CFS4F, IKO miniature type cam follower is compactly designed bearing, incorporating very thin needle rollers in an outer ring with a small outside diameter. CFS4F is made by stainless steel, which is suited for applications where oil cannot be used or where water splashes, and in cleanrooms. CFS4F is used in electronic devices, OA equipment, small index devices, etc.
CFS4F, IKO, Stud diameter: 4 mm, Outer diameter: 8 mm, Total width: 15 mm.
