IKO CFE24VB bearings
CFE24VB IKO Eccentric Type Cam Followers, With Stud Head Hex Hole
- Stud diameter
- 33.000 mm
- Outside diameter
- 62.000 mm
- Total width
- 80.100 mm
- Width, ourter ring
- 29.000 mm
- Cr
- 46600 N
- C0r
- 92000 N
- Net weight
- 900 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock

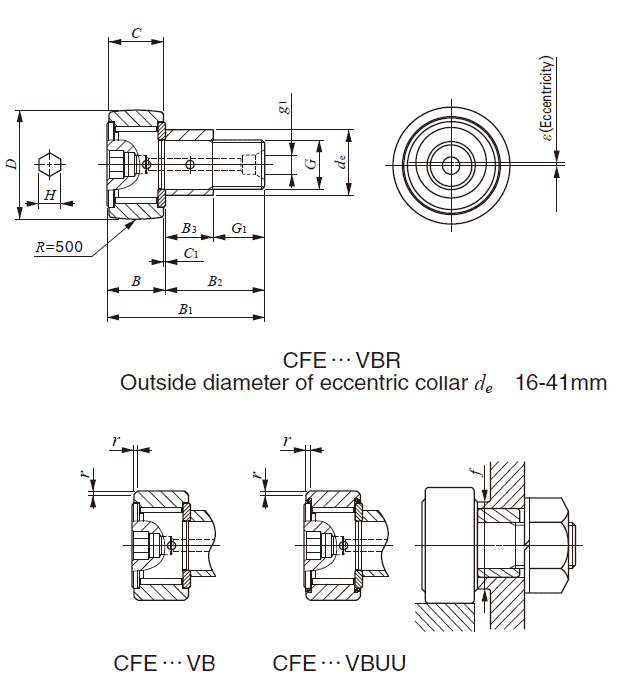

Technical specification for IKO CFE24VB
| IKO PN. | CFE24VB | |
|---|---|---|
| Outside diameter of eccentric collar | 33 mm | |
| Mass (Ref.) | 900 g | |
| D | 62 | Boundary dimensions mm |
| C | 29 | |
| de | 33 | |
| G | M24X1.5 | |
| B3 | 25.5 | |
| B max | 30.6 | |
| B1 max | 80.1 | |
| B2 | 49.5 | |
| C1 | 0.8 | |
| g1 | 6 | |
| G1 | 24 | |
| H | 12 | |
| r min | 1 | |
| ε | 0.8 | Eccentricity |
| f min. | 40 mm | Mounting dimension |
| 215 N.m | Maximum tightening torque | |
| C | 46600 N | Basic dynamic load rating |
| C0 | 92000 N | Basic static load rating |
| 52000 N | Maximum allowable static load | |
CFE24VB, IKO eccentric type cam follower can be rotated to create a uniform line, enabling easy adjustment for even load distribution across the outer ring outer surface. CFE24VB is full complement type, that is suitable for heavy loads at low speed rotations.
CFE24VB, IKO, Eccentricity: 0.8 mm, Outside diameter of eccentric collar: 33 mm, Outer diameter: 62 mm, Total width: 80.1 mm.
