IKO CFE16B bearings
CFE16B IKO Eccentric Type Cam Followers, With Cage & Stud Head Hex Hole
- Stud diameter
- 22.000 mm
- Outside diameter
- 35.000 mm
- Total width
- 52.100 mm
- Width, ourter ring
- 18.000 mm
- Cr
- 12000 N
- C0r
- 18300 N
- Net weight
- 190 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- With
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock

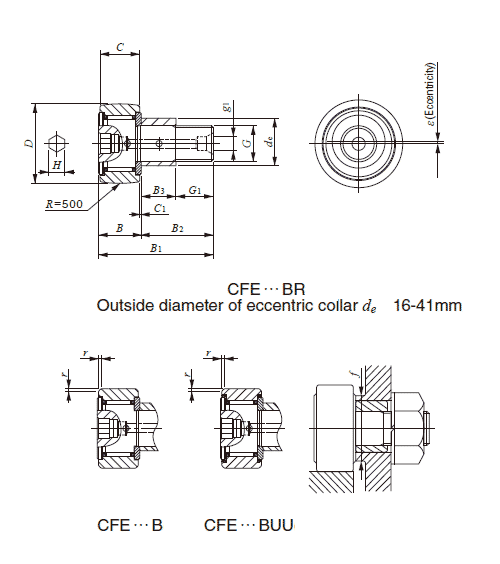

Technical specification for IKO CFE16B
| IKO PN. | CFE16B | |
|---|---|---|
| Outside diameter of eccentric collar | 22 mm | |
| Mass (Ref.) | 190 g | |
| D | 35 | Boundary dimensions mm |
| C | 18 | |
| de | 22 | |
| G | M16X1.5 | |
| B3 | 15.5 | |
| B max | 19.6 | |
| B1 max | 52.1 | |
| B2 | 32.5 | |
| C1 | 0.8 | |
| g1 | 4 | |
| G1 | 17 | |
| H | 6 | |
| r min | 0.6 | |
| ε | 0.8 | Eccentricity |
| f min. | 26 mm | Mounting dimension |
| 58.5 N.m | Maximum tightening torque | |
| C | 12000 N | Basic dynamic load rating |
| C0 | 18300 N | Basic static load rating |
| 18300 N | Maximum allowable static load | |
CFE16B, IKO eccentric type cam follower can be rotated to create a uniform line, enabling easy adjustment for even load distribution across the outer ring outer surface.
CFE16B, IKO, Eccentricity: 0.8 mm, Outside diameter of eccentric collar: 22 mm, Outer diameter: 35 mm, Total width: 52.1 mm.
