IKO CFE10-1B bearings
CFE10-1B IKO Eccentric Type Cam Followers, With Cage & Stud Head Hex Hole
- Stud diameter
- 13.000 mm
- Outside diameter
- 26.000 mm
- Total width
- 36.200 mm
- Width, ourter ring
- 12.000 mm
- Cr
- 5430 N
- C0r
- 6890 N
- Net weight
- 65 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- With
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock

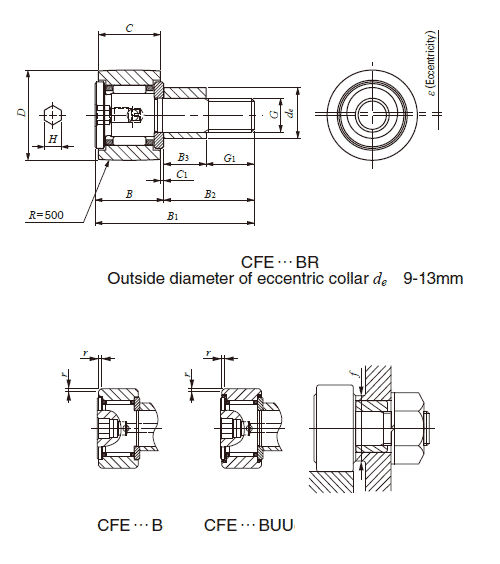

Technical specification for IKO CFE10-1B
| IKO PN. | CFE10-1B | |
|---|---|---|
| Outside diameter of eccentric collar | 13 mm | |
| Mass (Ref.) | 65 g | |
| D | 26 | Boundary dimensions mm |
| C | 12 | |
| de | 13 | |
| G | M10X1.25 | |
| B3 | 10.5 | |
| B max | 13.2 | |
| B1 max | 36.2 | |
| B2 | 23 | |
| C1 | 0.6 | |
| g1 | - | |
| G1 | 12.5 | |
| H | 4 | |
| r min | 0.3 | |
| ε | 0.4 | Eccentricity |
| f min. | 16 mm | Mounting dimension |
| 13.8 N.m | Maximum tightening torque | |
| C | 5430 N | Basic dynamic load rating |
| C0 | 6890 N | Basic static load rating |
| 6890 N | Maximum allowable static load | |
CFE10-1B, IKO eccentric type cam follower can be rotated to create a uniform line, enabling easy adjustment for even load distribution across the outer ring outer surface.
CFE10-1B, IKO, Eccentricity: 0.4 mm, Outside diameter of eccentric collar: 13 mm, Outer diameter: 26 mm, Total width: 36.2 mm.
