IKO CF6BR bearings
IKO, Standard type cam follower
- Stud diameter
- 6.000 mm
- Outside diameter
- 16.000 mm
- Total width
- 28.200 mm
- Width, ourter ring
- 11.000 mm
- Cr
- 3660 N
- C0r
- 3650 N
- Net weight
- 18.5 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Non-contact Shield on both sides
- Cage
- Steel sheet metal
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned outer ring
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Lubricant in bearing
- Grease
- Relubrication feature
- Hole
In stock

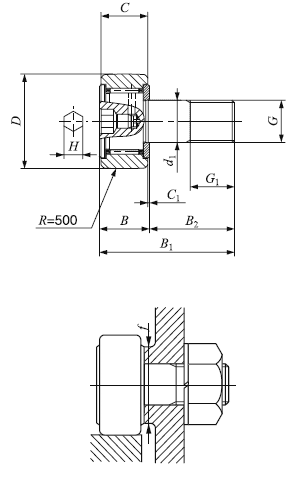

Technical specification for IKO CF6BR
| IKO Number | CF6BR |
|---|---|
| D | 16 mm |
| C | 11 mm |
| d1 | 6 mm |
| G | M 6x1 |
| G1 | 8 mm |
| B max | 12.2 mm |
| B1 max | 28.2 mm |
| B2 | 16 mm |
| C1 | 0.6 mm |
| H | 3 mm |
| rs min | 0.3 mm |
| fmin | 11 mm, Mounting dimension |
| Maximum tightening torque | 2.7 N.m |
| C | 3660 N, Basic dynamic load rating |
| C0 | 3650 N, Basic static load rating |
| Maximum allowable load | 1950 N |
| Mass | 18.5 g (approx.) |
CF6BR, IKO, Standard type cam follower, D: 16mm, C: 11mm, d1: 6mm, G: M6x1.
- CF.B: Standard type cam follower
- 16: stud diameter 16mm
- R: Crowned outer ring
IKO CF 6 BR is interchangeable with KR16
