IKO CF20-1FB bearings
CF20-1FB IKO Cam Followers, Stainless Steel Made, Stud Head Hex Hole
- Stud diameter
- 20.000 mm
- Outside diameter
- 47.000 mm
- Total width
- 66.100 mm
- Width, ourter ring
- 24.000 mm
- Cr
- 16500 N
- C0r
- 27700 N
- Net weight
- 385 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- With
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Stainless steel
- Rolling material
- Stainless steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock

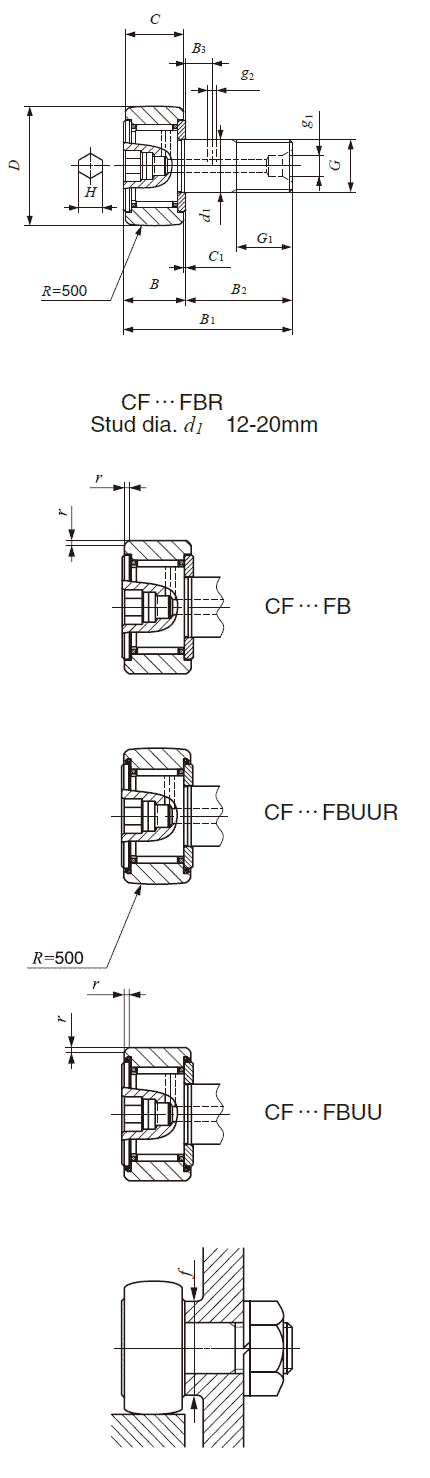

Technical specification for IKO CF20-1FB
| IKO PN. | CF20-1FB | |
|---|---|---|
| Stud dia. | 20 mm | |
| Mass (Ref.) | 385 g | |
| D | 47 | Boundary dimensions mm |
| C | 24 | |
| d1 | 20 | |
| G | 21 | |
| G1 | M20X1.5 | |
| B | 25.6 | |
| B1 | 66.1 | |
| B2 | 40.5 | |
| B3 | 9 | |
| C1 | 0.8 | |
| g1 | 8 | |
| g2 | 4 | |
| H | 8 | |
| r min. | 1 | |
| f min. | 34 mm | Mounting dimension |
| 119 N.m | Maximum tightening torque | |
| C | 16500 N | Basic dynamic load rating |
| C0 | 27700 N | Basic static load rating |
| 27700 N | Maximum allowable static load | |
CF20-1FB, IKO stainless steel made cam followers, stud head hex hole. Stud diameter: 20 mm, Outer diameter: 47 mm, Total width: 66.1 mm.
CF20-1FB IKO is stainless steel made, which is suitable for applications where oil cannot be used or where water splashes, and in cleanrooms.
