IKO CF12VBR bearings
CF12VBR IKO Full Complement Type Cam Followers CF...VB, Stud Head Hex Hole
- Stud diameter
- 12.000 mm
- Outside diameter
- 30.000 mm
- Total width
- 40.200 mm
- Width, ourter ring
- 14.000 mm
- Cr
- 13500 N
- C0r
- 19700 N
- Net weight
- 97 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock
Technical specification for IKO CF12VBR
| IKO PN. | CF12VBR | |
|---|---|---|
| Stud dia. | 12 mm | |
| Mass (Ref.) | 97 g | |

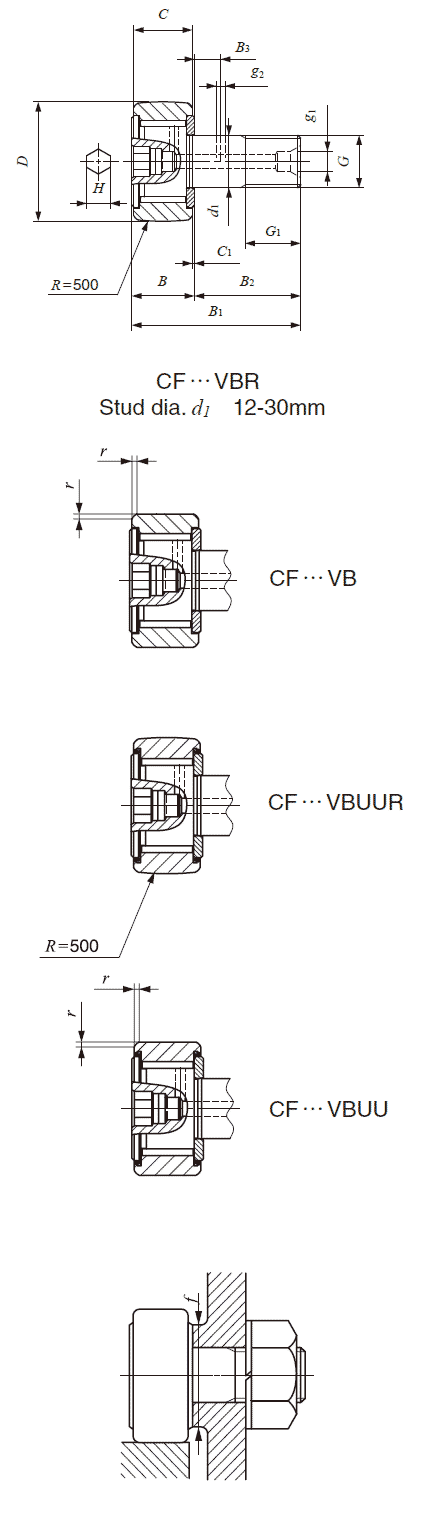

| D | 30 mm | Boundary dimensions |
| C | 14 mm | |
| d1 | 12 mm | |
| G | M12X1.5 | |
| G1 | 13 mm | |
| B max | 15.2 mm | |
| B1 max | 40.2 mm | |
| B2 | 25 mm | |
| B3 | 6 mm | |
| C1 | 0.6 mm | |
| g1 | 4 mm | |
| g2 | 3 mm | |
| H | 6 mm | |
| f min. | 21 mm | Mounting dimension |
| 21.9 N.m | Maximum tightening torque | |
| C | 13500 N | Basic dynamic load rating |
| C0 | 19700 N | Basic static load rating |
| 13200 N | Maximum allowable static load | |
CF12VBR, IKO full complement type cam followers CF...VB, stud head hex hole. Stud diameter: 12 mm, Outer diameter: 30 mm, Total width: 40.2 mm.
CF12VBR IKO is suitable for heavy loads at low speed rotations.
