IKO CF10VBM bearings
CF10VBM IKO Full Complement Type Cam Followers CF...VB, Stud Head Hex Hole
- Stud diameter
- 10.000 mm
- Outside diameter
- 22.000 mm
- Total width
- 36.200 mm
- Width, ourter ring
- 12.000 mm
- Cr
- 9570 N
- C0r
- 14500 N
- Net weight
- 46 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Head
In stock

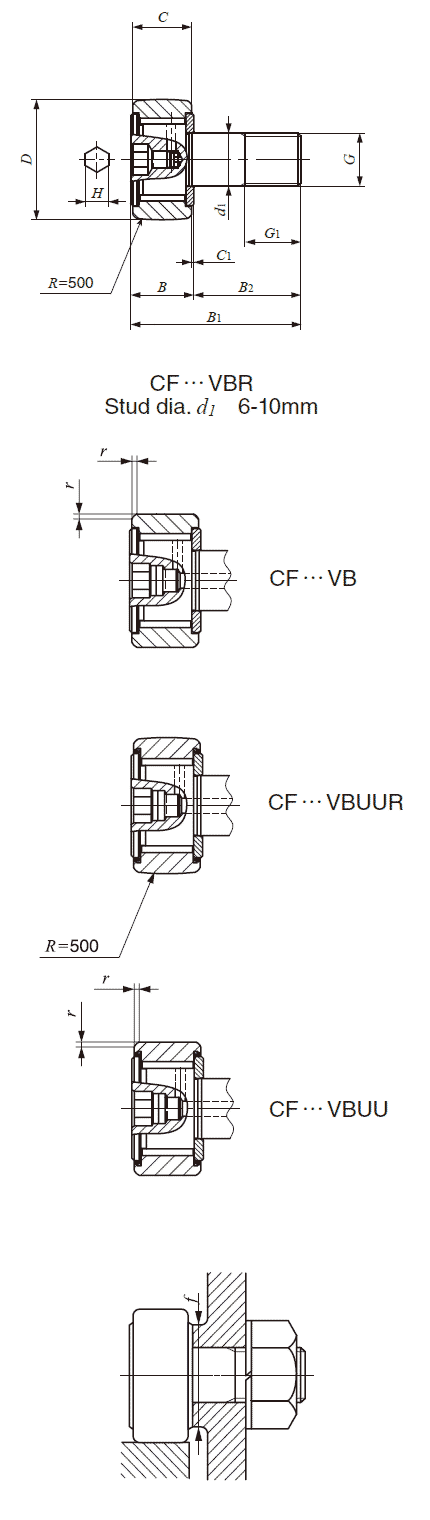

Technical specification for IKO CF10VBM
| IKO PN. | CF10VBM | |
|---|---|---|
| Stud dia. | 10 mm | |
| Mass (Ref.) | 46 g | |
| D | 22 mm | Boundary dimensions |
| C | 12 mm | |
| d1 | 10 mm | |
| G | M10X1 | |
| G1 | 12 mm | |
| B max | 13.2 mm | |
| B1 max | 36.2 mm | |
| B2 | 23 mm | |
| B3 | - mm | |
| C1 | 0.6 mm | |
| g1 | - mm | |
| g2 | - mm | |
| H | 4 mm | |
| r min. | 0.3 mm | |
| f min. | 16 mm | Mounting dimension |
| 14.7 N.m | Maximum tightening torque | |
| C | 9570 N | Basic dynamic load rating |
| C0 | 14500 N | Basic static load rating |
| 8650 N | Maximum allowable static load | |
CF10VBM, IKO full complement type cam followers CF...VB, stud head hex hole. Stud diameter: 10 mm, Outer diameter: 22 mm, Total width: 36.2 mm.
CF10VBM IKO is suitable for heavy loads at low speed rotations.
