IKO CRBT505AC1 bearings
CRBT505AC1, IKO, Super Slim Type Crossed Roller Bearings CRBT, With Separator
- Bore diameter
- 50.000 mm
- Outside diameter
- 61.000 mm
- Total width
- 5.000 mm
- Cr
- 2280 N
- C0r
- 3200 N
- Net weight
- 32.3 g
- Measurement system
- Metric
- Sealing
- Without
- Cage
- spacer retainer
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- Other
- Lubricant in bearing
- Grease
In stock
Technical specification for IKO CRBT505AC1
| Part Number | CRBT505AC1 | |
|---|---|---|
| Brand | IKO | |
| Type | Super Slim Type Crossed Roller Bearings | |
| Cage | With Separator | |
| Seal | Open type | |

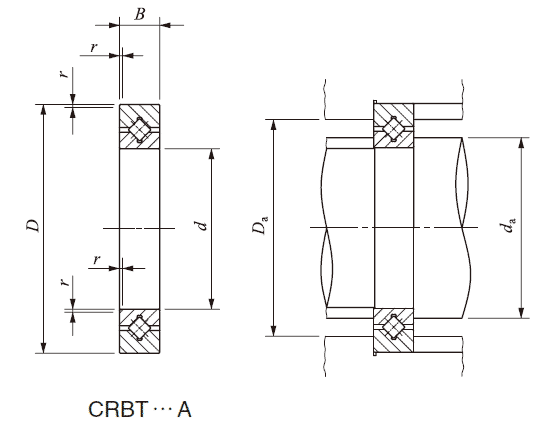

| d | 50 mm | Boundary dimensions |
| D | 61 mm | |
| B | 5 mm | |
| r min. | 0.15 mm | |
| da | 52.5 mm | Mounting dimensions |
| Da | 57 mm | |
| C | 2280 N | Basic dynamic load rating |
| C0 | 3200 N | Basic static load rating |
| Min. | 0 µm | Radial internal clearance C1 |
| Max. | 15 µm | |
| Mass | 32.3 g | |
IKO CRBT505AC1 is extremely compact bearing having 5.5 mm of sectional height and 5 mm of width.Separators are incorporated between Cylindrical rollers for smooth rotation. These compactness, lightness and smoothness contribute downsizing of the machine and saving driving power.
