IKO CRBS1008AUUT1 bearings
CRBS1008AUUT1, IKO, Slim Type Crossed Roller Bearings CRBS, With Separator
- Bore diameter
- 100.000 mm
- Outside diameter
- 116.000 mm
- Total width
- 8.000 mm
- Cr
- 6530 N
- C0r
- 11100 N
- Net weight
- 152 g
- Measurement system
- Metric
- Sealing
- Seal on both sides
- Cage
- spacer retainer
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- Other
- Lubricant in bearing
- Grease
In stock
Technical specification for IKO CRBS1008AUUT1
| Part Number | CRBS1008AUUT1 | |
|---|---|---|
| Brand | IKO | |
| Type | Slim Type Crossed Roller Bearings | |
| Cage | With Separator | |
| Seal | Sealed type | |

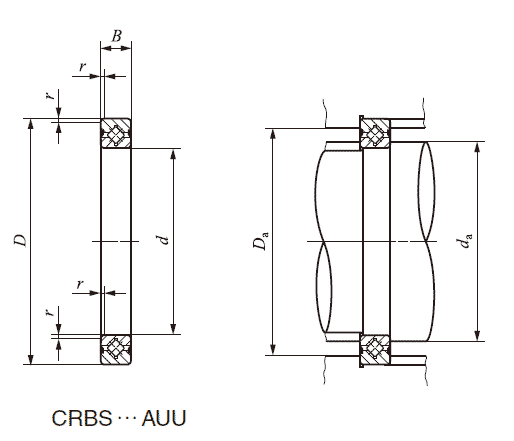

| d | 100 mm | Boundary dimensions |
| D | 116 mm | |
| B | 8 mm | |
| r min. | 0.4 mm | |
| da | 104 mm | Mounting dimensions |
| Da | 111 mm | |
| C | 6530 N | Basic dynamic load rating |
| C0 | 11100 N | Basic static load rating |
| Min. | -8 µm | Radial internal clearance T1 |
| Max. | 0 µm | |
| Mass | 152 g | |
IKO CRBS1008AUUT1 is slim crossed roller bearing having a small outside diameter, in comparson with the bore diameter, and a narrow width. CRBS1008AUUT1 with separator provide smooth rotation and are suitable for applications where rotational speed is comparatively high.
