IKO CRBHV25025AT1 bearings
CRBHV25025AT1, IKO, High Rigidity Type Crossed Roller Bearings CRBHV

- Bore diameter
- 250.000 mm
- Outside diameter
- 310.000 mm
- Total width
- 25.000 mm
- Cr
- 102000 N
- C0r
- 207000 N
- Net weight
- 4.97 kg
- Measurement system
- Metric
- Sealing
- Without
- Cage
- spacer retainer
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- Other
- Lubricant in bearing
- Without
In stock
Technical specification for IKO CRBHV25025AT1
Part Number | CRBHV25025AT1 | |
---|---|---|
Brand | IKO | |
Type | High Rigidity Type Crossed Roller Bearings | |
Cage | With Separator | |
Seal | Open type | |

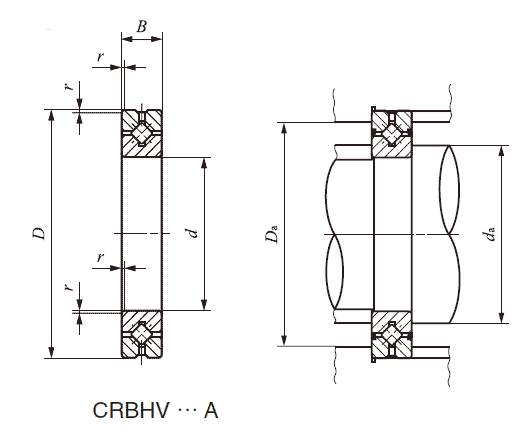

d | 250 mm | Boundary dimensions |
D | 310 mm | |
B | 25 mm | |
r min. | 1.5 mm | |
da | 262 mm | Mounting dimensions |
Da | 295 mm | |
C | 102000 N | Basic dynamic load rating |
C0 | 207000 N | Basic static load rating |
Min. | -20 µm | Radial internal clearance T1 |
Max. | 0 µm | |
Mass | 4.97 kg |

IKO CRBHV25025AT1 is high rigidity type crossed roller bearing. Both inner and outer rings have a solid one-piece construction. Therefore, high accuracy and high rigidity are achieved, and mounting errors can be minimized. As separators are incorporated between the cylindrical rollers for smooth rotation, CRBHV25025AT1 is suitable for applications where rotational speed is comparatively high.
