IKO CRBFV11528AUUT1 bearings
CRBFV11528AUUT1, IKO, Mounting Holed Type Crossed Roller Bearings CRBFV, With Separator
- Bore diameter
- 115.000 mm
- Outside diameter
- 240.000 mm
- Total width
- 28.000 mm
- Cr
- 84300 N
- C0r
- 138000 N
- Net weight
- 6.63 kg
- Measurement system
- Metric
- Sealing
- Seal on both sides
- Cage
- spacer retainer
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- Other
- Lubricant in bearing
- Grease
In stock
Technical specification for IKO CRBFV11528AUUT1
| Part Number | CRBFV11528AUUT1 | |
|---|---|---|
| Brand | IKO | |
| Type | Mounting Holed Type Crossed Roller Bearings | |
| Cage | With Separator | |
| Seal | Sealed type | |

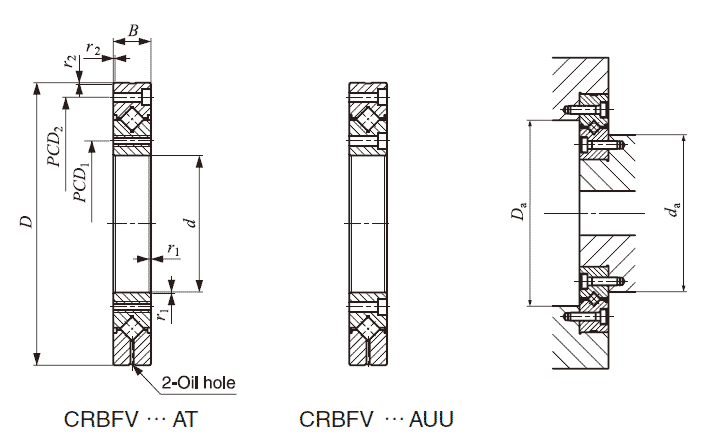

| d | 115 mm | Boundary dimensions |
| D | 240 mm | |
| B | 28 mm | |
| r1 min. | 1.5 mm | |
| r2 min. | 1.5 mm | |
| PCD1 | 139 mm | Mounting holes |
| Inner ring Mounting holes | 12-Φ9 through Φ14 counter bore depth 13.5 | |
| PCD2 | 217 mm | |
| Outer ring Mounting holes | 12-Φ9 through Φ14 counter bore depth 13.5 | |
| da | 162 mm | Mounting dimensions |
| Da | 198 mm | |
| C | 84300 N | Basic dynamic load rating |
| C0 | 138000 N | Basic static load rating |
| Min. | -15 µm | Radial internal clearance T1 |
| Max. | 0 µm | |
| Mass | 6.63 kg | |
IKO CRBFV11528AUUT1 is mounting holed type high rigidity crossed roller bearing with separator. Mounting holes are prepared on outer ring and inner ring providing easy mounting together with high rigidity and high accuracy.
