FAG 6000-2RSR bearings
FAG deep groove ball bearing, single row, seals, steel sheet metal cage
- Measurement system
- Metric
- Bore diameter
- 10.000 mm
- Outside diameter
- 26.000 mm
- Width
- 8.000 mm
- Cr
- 4850 N
- C0r
- 1970 N
- Limiting speed
- 18300 r/min
- Net weight
- 20 g
- Number of rows
- 1
- Sealing
- Contact seal on both sides
- Cage
- Steel sheet metal
- Bore type
- Cylindrical
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- None
In stock
Technical specification for FAG 6000-2RSR
| Part Number | 6000-2RSR | FAG |
|---|---|---|
| Sealing | 2RSR | Contact seal on both sides |
| Cage | JN | steel sheet metal |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | GA14 | ball bearing grease, low noise |
| Internal clearance | CN | Group N (CN) |
| Main Dimensions & Performance Data | ||
| d | 10 mm | Bore diameter |
| D | 26 mm | Outside diameter |
| B | 8 mm | Width |
| Cr | 4850 N | Basic dynamic load rating, radial |
| C0r | 1970 N | Basic static load rating, radial |
| Cur | 104 N | Fatigue load limit, radial |
| nG | 18 300 1/min | Limiting speed |
| m | ≈20 g | Net weight |

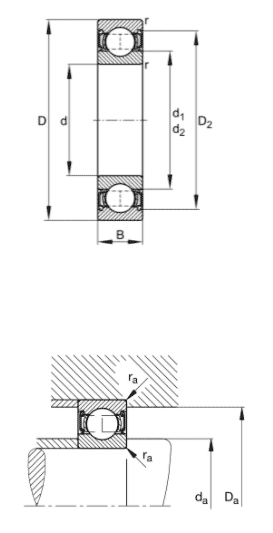

| Mounting dimensions | ||
| da | min. 12 mm | Minimum diameter shaft shoulder |
| Da | max. 24 mm | Maximum diameter of housing shoulder |
| ra | max. 0.3 mm | Maximum fillet radius |
| Dimensions | ||
| r min. | 0.3 mm | Minimum chamfer dimension |
| D2 | 22.5 mm | Caliber diameter outer ring |
| d1 | 14.7 mm | Shoulder diameter inner ring |
| Calculation factors | ||
| f0 | 12 | Calculation factor |
6000-2RSR, FAG, Deep groove ball bearing 60..-2RSR, single row, seals, steel sheet metal cage, Dimension: 10mm x 26mm x 8mm.
- 60: Single row deep groove ball bearing 60 series
- 00: bore diameter 10 mm
- -2RSR: Contact seal on both sides
