THK SSR35XW1UU
SSR35XW1UU, THK, Caged Ball LM Guide Radial Type Model SSR
- Series
- SSR
- Assembly Height
- 48.00 mm
- Width of Carriage
- 70.00 mm
- Length of Carriage
- 110.90 mm
- Distance locating faces
- 18.00 mm
- Mounting hole spacing - Width
- 50.00 mm
- Mounting hole spacing - Length
- 50.00 mm
- Height of Carriage
- 36.50 mm
- Width of Rail
- 34.00 mm
- Height of Rail
- 27.50 mm
- Pitch
- 80.00 mm
- Interchangeable
- Yes
- Number of rows
- 4
- Block Mounting
- Mounting from top
- Block Type
- Block type
- Guide Method
- Ball, Caged
- Sealing
- With
- Radial clearance
- Normal
- Accuracy
- Normal
- Basic dynamic load rating
- 64600 N
- Basic static load rating
- 71600 N
- Material
- Steel
- Weight carriage
- 1.1 kg
In stock

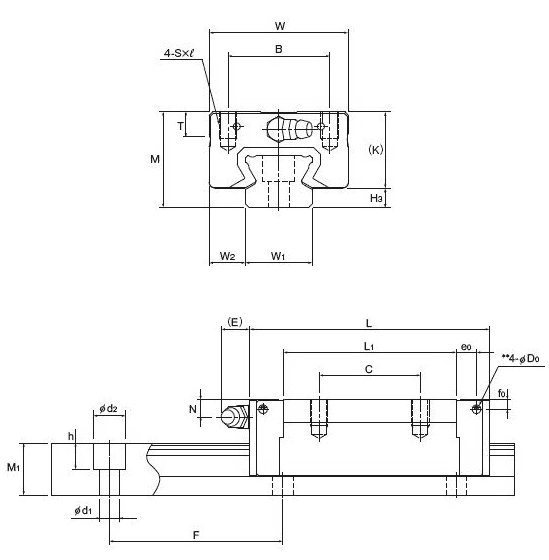

Technical specification for THK SSR35XW1UU
| Model No. | SSR35XW1UU | |
|---|---|---|
| Brand | THK | |
| Outer dimensions | ||
| M | 48 mm | Height |
| W | 70 mm | Width |
| L | 110.9 mm | Length |
| LM block dimensions | ||
| B | 50 mm | |
| C | 50 mm | |
| Sxl | M8 x 12 | |
| L1 | 80.5 mm | |
| T | 13 mm | |
| K | 36.5 mm | |
| N | 8.5 mm | |
| E | 12 mm | |
| Grease nipple | B-M6F | |
| LM rail dimensions | ||
| W1 | 34 mm | Width |
| W2 | 18 mm | |
| M1 | 27.5 mm | Height |
| F | 80 mm | Pitch |
| d1xd2xh | 9x14x12 mm | |
| Basic load rating | ||
| C | 64.6 kN | Basic dynamic load rating |
| C0 | 71.6 kN | Basic static load rating |
| Weight | ||
| LM block | 1.1 kg | |
THK SSR35XW1UU, Caged ball LM guide radial type, balls roll in four rows of raceways precision-ground on an LM rail and LM block, and ball cages and endplates incorporated in the LM block allow the balls to circulate.
SSR35XW1UU, THK, Assembly height: 48 mm; Width of block: 70 mm; Length of block: 110.9 mm; Width of rail: 34 mm; Block type, Mounting from top. SSR35XW1UU has a smaller width and tapped holes.
Features of THK SSR35XW1UU
- Compact, Radial type
- Superb Planar Running Accuracy
- Self-adjustment Capability
