THK SSR20XTB1UU
SSR20XTB1UU, THK, Caged Ball LM Guide Radial Type Model SSR
- Series
- SSR
- Assembly Height
- 28.00 mm
- Width of Carriage
- 59.00 mm
- Length of Carriage
- 66.50 mm
- Distance locating faces
- 19.50 mm
- Mounting hole spacing - Width
- 49.00 mm
- Mounting hole spacing - Length
- 32.00 mm
- Height of Carriage
- 22.00 mm
- Width of Rail
- 20.00 mm
- Height of Rail
- 15.50 mm
- Pitch
- 60.00 mm
- Interchangeable
- Yes
- Number of rows
- 4
- Block Mounting
- Mounting from bottom
- Block Type
- Flange type
- Guide Method
- Ball, Caged
- Sealing
- With
- Radial clearance
- Normal
- Accuracy
- Normal
- Basic dynamic load rating
- 19600 N
- Basic static load rating
- 23400 N
- Material
- Steel
- Weight carriage
- 0.31 kg
In stock

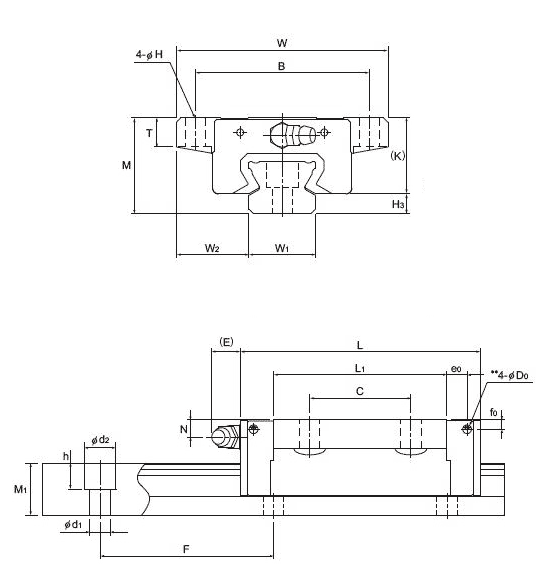

Technical specification for THK SSR20XTB1UU
| Model No. | SSR20XTB1UU | |
|---|---|---|
| Brand | THK | |
| Outer dimensions | ||
| M | 28 mm | Height |
| W | 59 mm | Width |
| L | 66.5 mm | Length |
| LM block dimensions | ||
| B | 49 mm | |
| C | 32 mm | |
| H | 5.5 mm | |
| L1 | 46.6 mm | |
| T | 9 mm | |
| K | 22 mm | |
| N | 5.5 mm | |
| E | 12 mm | |
| Grease nipple | B-M6F | |
| LM rail dimensions | ||
| W1 | 20 mm | Width |
| W2 | 19.5 mm | |
| M1 | 15.5 mm | Height |
| F | 60 mm | Pitch |
| d1xd2xh | 6x9.5x8.5 mm | |
| Basic load rating | ||
| C | 19.6 kN | Basic dynamic load rating |
| C0 | 23.4 kN | Basic static load rating |
| Weight | ||
| LM block | 0.31 kg | |
THK SSR20XTB1UU, Caged ball LM guide radial type, balls roll in four rows of raceways precision-ground on an LM rail and LM block, and ball cages and endplates incorporated in the LM block allow the balls to circulate.
SSR20XTB1UU, THK, Assembly height: 28 mm; Width of block: 59 mm; Length of block: 66.5 mm; Width of rail: 20 mm; Flange type, Mounting from bottom. SSR20XTB1UU can be mounted from the bottom, this type is optimal for applications where through holes for mounting bolts cannot be drilled on the table.
Features of THK SSR20XTB1UU
- Compact, Radial type
- Superb Planar Running Accuracy
- Self-adjustment Capability
