THK SSR15XV1UU
SSR15XV1UU, THK, Caged Ball LM Guide Radial Type Model SSR
- Series
- SSR
- Assembly Height
- 24.00 mm
- Width of Carriage
- 34.00 mm
- Length of Carriage
- 40.30 mm
- Distance locating faces
- 9.50 mm
- Mounting hole spacing - Width
- 26.00 mm
- Height of Carriage
- 19.50 mm
- Width of Rail
- 15.00 mm
- Height of Rail
- 12.50 mm
- Pitch
- 60.00 mm
- Interchangeable
- Yes
- Number of rows
- 4
- Block Mounting
- Mounting from top
- Block Type
- Block type
- Guide Method
- Ball, Caged
- Sealing
- With
- Radial clearance
- Normal
- Accuracy
- Normal
- Basic dynamic load rating
- 9100 N
- Basic static load rating
- 9700 N
- Material
- Steel
- Weight carriage
- 0.08 kg
In stock

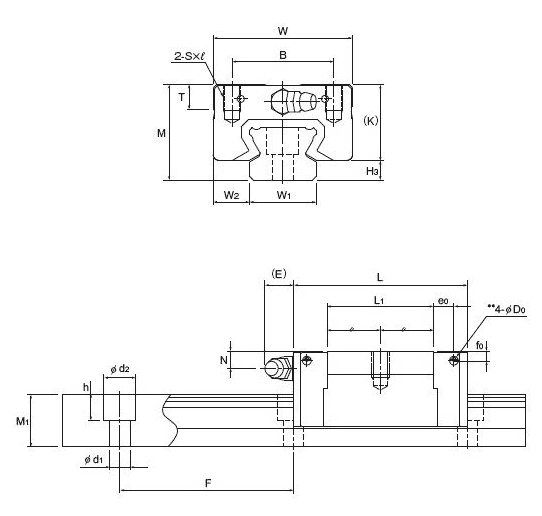

Technical specification for THK SSR15XV1UU
| Model No. | SSR15XV1UU | |
|---|---|---|
| Brand | THK | |
| Outer dimensions | ||
| M | 24 mm | Height |
| W | 34 mm | Width |
| L | 40.3 mm | Length |
| LM block dimensions | ||
| B | 26 mm | |
| Sxl | M4 x 7 | |
| L1 | 23.3 mm | |
| T | 6.5 mm | |
| K | 19.5 mm | |
| N | 4.5 mm | |
| E | 5.5 mm | |
| Grease nipple | PB1021B | |
| LM rail dimensions | ||
| W1 | 15 mm | Width |
| W2 | 9.5 mm | |
| M1 | 12.5 mm | Height |
| F | 60 mm | Pitch |
| d1xd2xh | 4.5x7.5x5.3 mm | |
| Basic load rating | ||
| C | 9.1 kN | Basic dynamic load rating |
| C0 | 9.7 kN | Basic static load rating |
| Weight | ||
| LM block | 0.08 kg | |
THK SSR15XV1UU, Caged ball LM guide radial type, balls roll in four rows of raceways precision-ground on an LM rail and LM block, and ball cages and endplates incorporated in the LM block allow the balls to circulate.
SSR15XV1UU, THK, Assembly height: 24 mm; Width of block: 34 mm; Length of block: 40.3 mm; Width of rail: 15 mm; Block type, Mounting from top. SSR15XV1UU has a smaller width and tapped holes. This type has the same cross-sectional shape as SSR-XW, but has a shoter overall LM block length (L).
Features of THK SSR15XV1UU
- Compact, Radial type
- Superb Planar Running Accuracy
- Self-adjustment Capability
