THK SHS15C
SHS15C, THK, Linear motion guides, Model SHS-C

Inquiry for price
THK SHS LM Guides
Series
SHS
Assembly Height
24.00 mm
Width of Carriage
47.00 mm
Length of Carriage
64.40 mm
Distance locating faces
16.00 mm
Mounting hole spacing - Width
38.00 mm
Mounting hole spacing - Length
30.00 mm
Height of Carriage
21.00 mm
Width of Rail
15.00 mm
Height of Rail
13.00 mm
Pitch
60.00 mm
Interchangeable
Yes
Number of rows
4
Block Mounting
Mounting from top or bottom
Block Type
Flange
Guide Method
Ball, Caged
Basic dynamic load rating
14200 N
Basic static load rating
24200 N
Material
Steel
Weight carriage
0.23 kg
Weight guide rail
1.3 kg/m

In stock

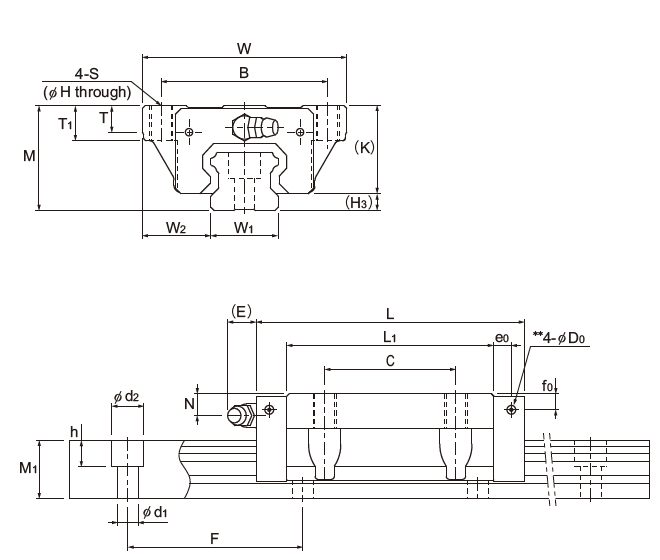

Technical specification for THK SHS15C

Model No. SHS15C
Brand THK
Outer dimensions
M 24 mm Height
W 47 mm Width
L 64.4 mm Length
LM block dimensions
B 38 mm
C 30 mm
S M5
H 4.4 mm
L1 48 mm
T 5.9 mm
T1 8 mm
K 21 mm
N 5.5 mm
E 5.5 mm
Grease nipple PB1021B
Pilot hole for side nipple
e0 4 mm
f0 4 mm
D0 3 mm
H3 3 mm
LM rail dimensions
W1 15 mm Width
W2 16 mm
M1 13 mm Height
F 60 mm Pitch
d1xd2xh 4.5x7.5x5.3 mm
Length Max

3000(1240) mm


Basic load rating
C 14.2 kN Basic dynamic load rating
C0 24.1 kN Basic static load rating
Static permissible moment
MA 0.175 kN.m 1 block
0.898 kN.m Double blocks
MB 0.175 kN.m 1 block
0.898 kN.m Double blocks
MC 0.16 kN.m 1 block
Weight
LM block 0.23 kg
LM rail 1.3 kg/m
THK SHS-C LM Guides

SHS15C, THK, Linear motion guides, Model SHS-C
