SKF 3312A bearings

SKF double row angular contact ball bearing with seals, SKF Explorer

Measurement system: Metric
Bore diameter: 60.000 mm
Outside diameter: 130.000 mm
Width: 54.000 mm
Cr: 127000 N
C0r: 95000 N
Limiting speed: 5000 r/min
Net weight: 2.93 kg
Number of rows: 2
Contact angle deg: 30
Sealing: Without
Cage: Steel cage
Bearing material: Steel
Rolling material: Steel
Internal clearance: CN
Lubricant in bearing: None
Relubrication feature: Without

In stock

Technical specification for SKF 3312A

SKF 3312A

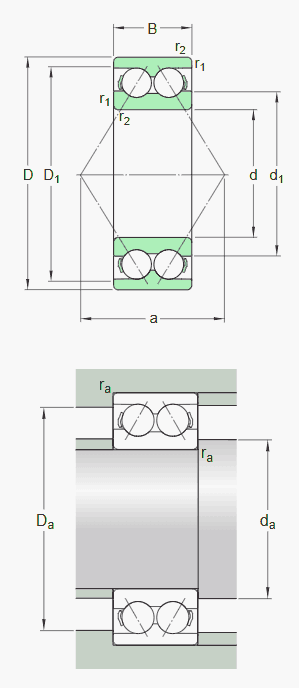

Dimensions
Part Number	3312A
Description	Double row angular contact ball bearing
Number of rows	2
Contact angle	30°
Ring type	One-piece inner and outer rings
Axial internal clearance	CN
Cage	Sheet metal
Sealing	Without
d	60.0 mm	Bore diameter
D	130.0 mm	Outside diameter
B	54.0 mm	Total width
d1	≈84.2 mm	Shoulder diameter inner ring
D1	≈110 mm	Shoulder diameter outer ring
r1,2	min. 2.1 mm	Chamfer dimension
a	78 mm	Distance pressure point(s)
Abutment dimensions
da	min. 72 mm	Abutment diameter shaft
Da	max. 118 mm	Abutment diameter housing
ra	max. 2 mm	Fillet radius
Calculation Data
C	127.0 kN	Basic dynamic load rating
C0	95.0 kN	Basic static load rating
Pu	4.05 kN	Fatigue load limit
	5000.0 r/min	Limiting speed
	5600.0 r/min	Reference speed

SKF 3312A, Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

Bore diameter: 60.0 mm
Outside diameter: 130.0 mm
Width: 54.0 mm
Basic dynamic load rating: 127.0 kN
Basic static load rating: 95.0 kN
Contact angle: 30°
