SKF 3200A-2RS1TN9/C3 bearings

SKF double row angular contact ball bearing with seals

Measurement system: Metric
Bore diameter: 10.000 mm
Outside diameter: 30.000 mm
Width: 14.000 mm
Cr: 7610 N
C0r: 4300 N
Limiting speed: 17000 r/min
Net weight: 0.0507 kg
Number of rows: 2
Contact angle deg: 30
Sealing: Seal on both sides
Cage: Resin cage
Bearing material: Steel
Rolling material: Steel
Internal clearance: C3
Lubricant in bearing: Grease
Relubrication feature: Without

In stock

Technical specification for SKF 3200A-2RS1TN9/C3

SKF 3200A-2RS1TN9/C3

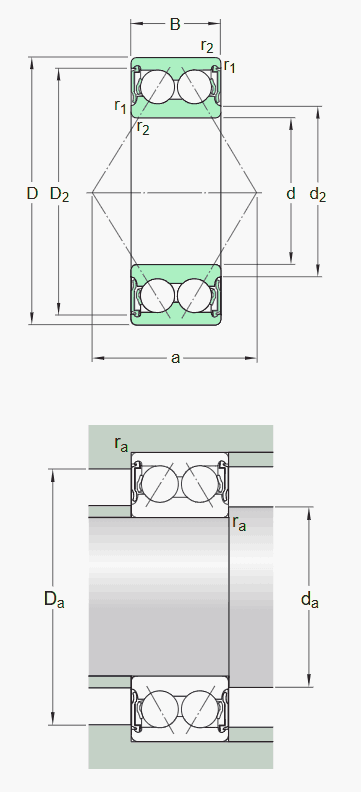

Dimensions
Part Number	3200A-2RS1TN9/C3
Description	Double row angular contact ball bearing with seals
Number of rows	2
Contact angle	30°
Ring type	One-piece inner and outer rings
Axial internal clearance	C3
Cage	Non-metallic
Sealing	Contact seal on both sides
d	10.0 mm	Bore diameter
D	30.0 mm	Outside diameter
B	14.0 mm	Total width
d2	≈15.8 mm	Recess diameter inner ring shoulder
D2	≈24.95 mm	Recess diameter outer ring shoulder
r1,2	min. 0.6 mm	Chamfer dimension
a	16 mm	Distance pressure point(s)
Abutment dimensions
da	min. 14.4 mm	Abutment diameter shaft
da	max. 15.5 mm	Abutment diameter shaft
Da	max. 25.6 mm	Abutment diameter housing
ra	max. 0.6 mm	Fillet radius
Calculation Data
C	7.61 kN	Basic dynamic load rating
C0	4.3 kN	Basic static load rating
Pu	0.183 kN	Fatigue load limit
	17000.0 r/min	Limiting speed

SKF 3200A-2RS1TN9/C3, Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

Bore diameter: 10.0 mm
Outside diameter: 30.0 mm
Width: 14.0 mm
Basic dynamic load rating: 7.61 kN
Basic static load rating: 4.3 kN
Contact angle: 30°
