NTN NUTR203/3AS bearings
NTN double-row cylindrical roller type roller followers
- Measurement system
- Metric
- Bore diameter
- 17.000 mm
- Outside diameter
- 40.000 mm
- Width
- 21.000 mm
- Width, ourter ring
- 20.000 mm
- Width, inner ring
- 21.000 mm
- Cr
- 24100 N
- C0r
- 29100 N
- Limiting speed
- 4700 r/min
- Net weight
- 0.147 kg
- Number of rows
- 2
- Sealing
- Shield on both sides
- Cage
- Without
- Outer diameter type
- Spherical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
- Coating
- Without
In stock
Technical specification for NTN NUTR203/3AS
| Bearing number | NUTR203/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | Double-row cylindrical roller type roller followers | |

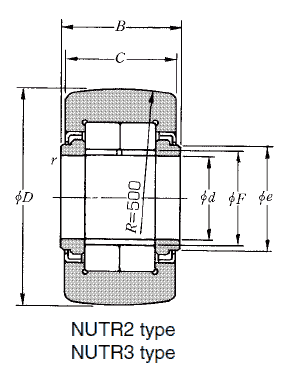

| d | 17 | Boundary dimensions mm |
| D | 40 | |
| B | 21 | |
| C | 20 | |
| e | 22 | |
| F | 21.5 | |
| r min | 0.3 | |
| Cr | 24100 N | Basic dynamic load rating |
| C0r | 29100 N | Basic static load rating |
| Track load capacity | 3850 N | Spherical outer ring |
| Limiting speed | 4700 r/min | Grease lubrication |
| Mass | 0.147 kg | (approx.) |
NTN NUTR203/3AS are double row cylindrical roller type roller followers.
