NTN NAB2/8 bearings
NTN roller followers with cage
- Measurement system
- Metric
- Bore diameter
- 8.000 mm
- Outside diameter
- 24.000 mm
- Width
- 10.000 mm
- Width, ourter ring
- 9.800 mm
- Width, inner ring
- 10.000 mm
- Cr
- 5200 N
- C0r
- 6400 N
- Limiting speed
- 16000 r/min
- Net weight
- 0.026 kg
- Number of rows
- 1
- Sealing
- Without
- Cage
- With
- Outer diameter type
- Spherical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Without
- Relubrication feature
- With
- Coating
- Without
In stock

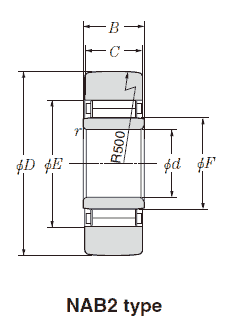

Technical specification for NTN NAB2/8
| Bearing number | NAB2/8 | |
|---|---|---|
| Brand | NTN | |
| Type | Roller followers with cage | |
| d | 8 | Dimensions mm |
| D | 24 | |
| B | 10 | |
| C | 9.8 | |
| E | 15 | |
| F | 12 | |
| r min. | 0.5 | |
| Cr | 5200 N | Basic dynamic load rating |
| C0r | 6400 N | Basic static load rating |
| Track load capacity | 1890 N | Spherical outer ring |
| Limiting speed | 12000 r/min | Grease lubrication |
| 16000 r/min | Oil lubrication | |
| Mass | 0.026 kg | (approx.) |
NTN NAB2/8 are roller followers with cage.
- NAB: type code
- 2: dimension series code
Please refer to NTN bearing nomenclature
