NTN NA22/8LL/3AS bearings
NTN roller followers with cage
- Measurement system
- Metric
- Bore diameter
- 8.000 mm
- Outside diameter
- 24.000 mm
- Width
- 12.000 mm
- Width, ourter ring
- 11.800 mm
- Width, inner ring
- 12.000 mm
- Cr
- 5150 N
- C0r
- 5250 N
- Limiting speed
- 10000 r/min
- Net weight
- 0.035 kg
- Number of rows
- 1
- Sealing
- Seal on both sides
- Cage
- With
- Outer diameter type
- Spherical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
- Coating
- Without
In stock

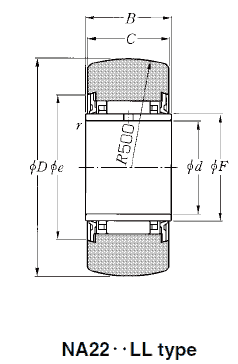

Technical specification for NTN NA22/8LL/3AS
| Bearing number | NA22/8LL/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | Roller followers with cage | |
| d | 8 | Dimensions mm |
| D | 24 | |
| B | 12 | |
| C | 11.8 | |
| e | 18 | |
| F | 12 | |
| r min. | 0.3 | |
| Cr | 5150 N | Basic dynamic load rating |
| C0r | 5250 N | Basic static load rating |
| Track load capacity | 1900 N | Spherical outer ring |
| Limiting speed | 10000 r/min | Grease lubrication |
| Mass | 0.035 kg | (approx.) |
NTN NA22/8LL/3AS are roller followers with cage.
- NA: type code
- 22: dimension series code
- 8: dimension code
- LL: Seal
- 3AS: Grease
Please refer to NTN bearing nomenclature
