NTN NUKR30H/3AS bearings
NUKR..H type full-complement double-row cylindrical roller cam followers
- Stud diameter
- 12.000 mm
- Outside diameter
- 30.000 mm
- Total width
- 40.000 mm
- Width, ourter ring
- 14.000 mm
- Cr
- 13300 N
- C0r
- 13500 N
- Limiting speed
- 6900 r/min
- Net weight
- 0.088 kg
- Measurement system
- Metric
- Number of rows
- 2
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned outer ring
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for NTN NUKR30H/3AS

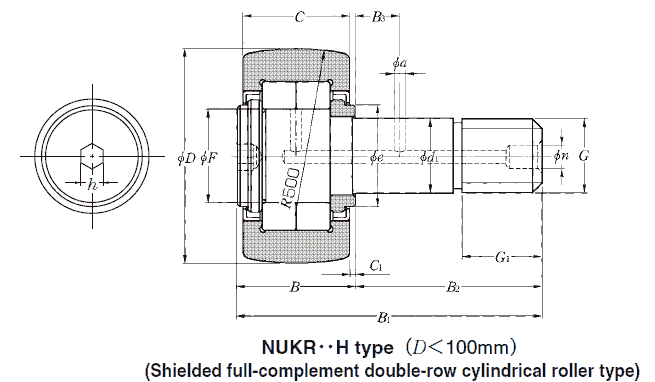

| Bearing number | NUKR30H/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | NUKR..H type full-complement double-row cylindrical roller cam followers | |
| D | 30 | Dimensions mm |
| d1 | 12 | |
| C | 14 | |
| F | 14.5 | |
| B | 15 | |
| B1 | 40 | |
| B2 | 25 | |
| G | M12X1.5 | |
| G1 | 13 | |
| B3 | 6 | |
| C1 | 0.6 | |
| n | 6 | |
| m | - | |
| a | 3 | |
| e | 15 | |
| h | 6 | |
| Cr | 13300N | Basic dynamic load rating |
| C0r | 13500 N | Basic static load rating |
| 2620 N | Track load capacity | |
| 20 N.m | Maximum tightening torque | |
| Limiting speed | 6900 r/min | Grease lubrication |
| Mass | 0.088 kg | (approx.) |
The components of IKO NUKR30H/3AS cam follower:
- Outer ring outer diameter: 30 mm
- Metric series full-complement double-row
- Outer profile: spherical outside surface
- Stud head: with hexagonal socket
- Grease: prelubricated
