NTN NUKR140H/3AS bearings
NUKR..H type full-complement double-row cylindrical roller cam followers
- Stud diameter
- 48.000 mm
- Outside diameter
- 140.000 mm
- Total width
- 160.000 mm
- Width, ourter ring
- 57.000 mm
- Cr
- 201000 N
- C0r
- 294000 N
- Limiting speed
- 1500 r/min
- Net weight
- 7.98 kg
- Measurement system
- Metric
- Number of rows
- 2
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned outer ring
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for NTN NUKR140H/3AS

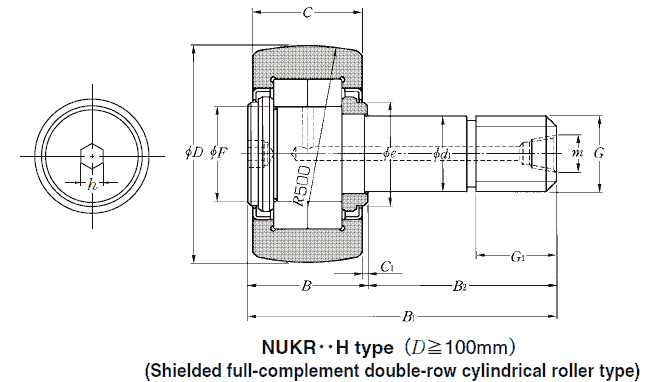

| Bearing number | NUKR140H/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | NUKR..H type full-complement double-row cylindrical roller cam followers | |
| D | 140 | Dimensions mm |
| d1 | 48 | |
| C | 57 | |
| F | 65 | |
| B | 60 | |
| B1 | 160 | |
| B2 | 100 | |
| G | M48X1.5 | |
| G1 | 52 | |
| B3 | - | |
| C1 | 1.5 | |
| n | - | |
| m | PT 1/8 | |
| a | - | |
| e | 72.5 | |
| h | 14 | |
| Cr | 201000N | Basic dynamic load rating |
| C0r | 294000 N | Basic static load rating |
| 20000 N | Track load capacity | |
| 1540 N.m | Maximum tightening torque | |
| Limiting speed | 1500 r/min | Grease lubrication |
| Mass | 7.98 kg | (approx.) |
The components of IKO NUKR140H/3AS cam follower:
- Outer ring outer diameter: 140 mm
- Metric series full-complement double-row
- Outer profile: spherical outside surface
- Stud head: with hexagonal socket
- Grease: prelubricated
