NTN KRV10H/3AS bearings
KRV..H type cam followers
- Stud diameter
- 3.000 mm
- Outside diameter
- 10.000 mm
- Total width
- 17.000 mm
- Width, ourter ring
- 7.000 mm
- Cr
- 2500 N
- C0r
- 2610 N
- Limiting speed
- 32000 r/min
- Net weight
- 5 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned outer ring
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock

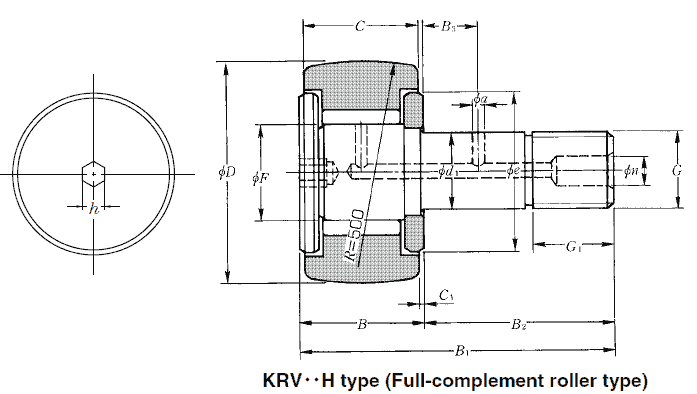

Technical specification for NTN KRV10H/3AS
| Bearing number | KRV10H/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | KRV..H type cam followers | |
| D | 10 | Dimensions mm |
| d1 | 3 | |
| C | 7 | |
| F | 4 | |
| B | 8 | |
| B1 | 17 | |
| B2 | 9 | |
| G | M3X0.5 | |
| G1 | 5 | |
| B3 | - | |
| C1 | 0.5 | |
| n | - | |
| a | - | |
| e | 7 | |
| h | 2.5 | |
| Cr | 2500N | Basic dynamic load rating |
| C0r | 2610 N | Basic static load rating |
| 560 N | Track load capacity | |
| 0.5 N.m | Maximum tightening torque | |
| Limiting speed | 25000 r/min | Grease lubrication |
| 32000 r/min | Oil lubrication | |
| Mass | 5 g | (approx.) |
The components of IKO KRV10H/3AS cam follower:
- Outer ring outer diameter: 10 mm
- Metric series, full-complement roller type
- Outer profile: spherical outside surface
- Stud head: with hexagonal hole
- Cage: without; full-complement roller type
- Grease: prelubricated
