NTN KRU19X bearings
KRU..X type eccentric-stud cam followers
- Stud diameter
- 8.000 mm
- Outside diameter
- 19.000 mm
- Total width
- 32.000 mm
- Width, ourter ring
- 11.000 mm
- Cr
- 4750 N
- C0r
- 5400 N
- Limiting speed
- 20000 r/min
- Net weight
- 0.031 kg
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- With
- Shape of stud head
- Tapped hole
- Shape of outer ring
- Cylindrical outer ring
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- CN
- Relubrication feature
- With
In stock

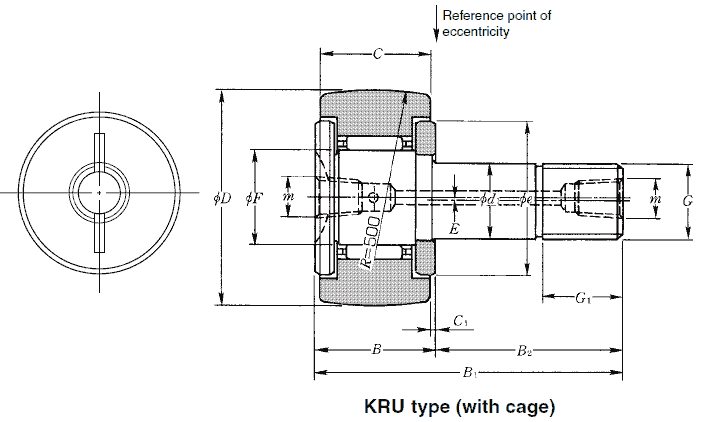

Technical specification for NTN KRU19X
| Bearing number | KRU19X | |
|---|---|---|
| Brand | NTN | |
| Type | KRU..X type eccentric-stud cam followers | |
| D | 19 | Dimensions mm |
| d1 | 8 | |
| C | 11 | |
| F | 10 | |
| B | 12 | |
| B1 | 32 | |
| B2 | 20 | |
| G | M8X1.25 | |
| G1 | 10 | |
| Eccentricity E | 0.25 | |
| C1 | 0.6 | |
| m | M4X0.7 | |
| e | 14 | |
| Cr | 4750N | Basic dynamic load rating |
| C0r | 5400 N | Basic static load rating |
| 4050 N | Track load capacity | |
| 8 N.m | Maximum tightening torque | |
| Limiting speed | 15000 r/min | Grease lubrication |
| 20000 r/min | Oil lubrication | |
| Mass | 0.031 kg | (approx.) |
IKO KRU19X have an eccentric stud (eccentricity: 0.25 mm) to compensate for positional variation of the stud mounting hole.
The components of IKO KRU19X cam follower:
- Outer ring outer diameter: 19 mm
- Metric series with cage
- Eccentric stud type
- Outer profile: cylindrical outside surface
- Stud head: with tapped hole hole and recessed slot for screwdriver
- Grease: Without
