NTN KRMV6XH/3AS bearings
KRMV..XH type miniature cam followers
- Stud diameter
- 3.000 mm
- Outside diameter
- 6.000 mm
- Total width
- 11.500 mm
- Width, ourter ring
- 4.000 mm
- Cr
- 1280 N
- C0r
- 1840 N
- Net weight
- 1.4 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for NTN KRMV6XH/3AS

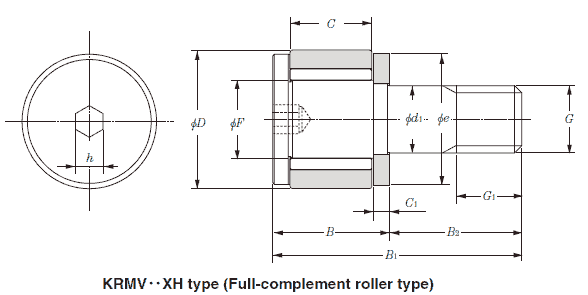

| Bearing number | KRMV6XH/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | KRMV..XH type miniature cam followers | |
| D | 6 | Dimensions mm |
| d1 | 3 | |
| C | 4 | |
| F | 3.4 | |
| B | 5.5 | |
| B1 | 11.5 | |
| B2 | 6 | |
| G | M3X0.5 | |
| G1 | 3 | |
| C1 | 0.7 | |
| e | 5.8 | |
| h | 1.3 | |
| Cr | 1280N | Basic dynamic load rating |
| C0r | 1840 N | Basic static load rating |
| 480 N | Track load capacity | |
| 0.5 N.m | Maximum tightening torque | |
| Mass | 1.4 g | (approx.) |
The components of IKO KRMV6XH/3AS miniature cam follower:
- Outer ring outer diameter: 6 mm
- Metric series with cage
- Outer profile: Cylindrical outside surface
- Stud head: with hexagonal hole
- Cage: without, full-complement roller type
- Grease: prelubricated
