NTN KRM5XT2H/3AS bearings
KRM..XH type miniature cam followers
- Stud diameter
- 2.500 mm
- Outside diameter
- 5.000 mm
- Total width
- 9.500 mm
- Width, ourter ring
- 3.000 mm
- Cr
- 445 N
- C0r
- 370 N
- Net weight
- 0.7 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Shield type
- Cage
- With
- Shape of stud head
- Hex socket
- Shape of outer ring
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock

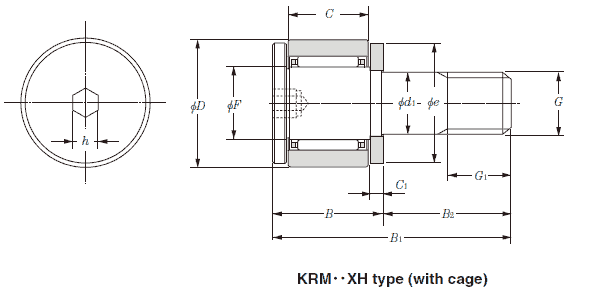

Technical specification for NTN KRM5XT2H/3AS
| Bearing number | KRM5XT2H/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | KRM..XH type miniature cam followers | |
| D | 5 | Dimensions mm |
| d1 | 2.5 | |
| C | 3 | |
| F | 2.7 | |
| B | 4.5 | |
| B1 | 9.5 | |
| B2 | 5 | |
| G | M2.5X0.45 | |
| G1 | 2.5 | |
| C1 | 0.7 | |
| e | 4.8 | |
| h | 0.9 | |
| Cr | 445N | Basic dynamic load rating |
| C0r | 370 N | Basic static load rating |
| 294 N | Track load capacity | |
| 0.3 N.m | Maximum tightening torque | |
| Mass | 0.7 g | (approx.) |
The components of IKO KRM5XT2H/3AS miniature cam follower:
- Outer ring outer diameter: 5 mm
- Metric series with cage
- Outer profile: Cylindrical outside surface
- Stud head: with hexagonal hole
- Cage: resin cage
- Grease: prelubricated
