NTN CRV10-1LLH/3AS bearings

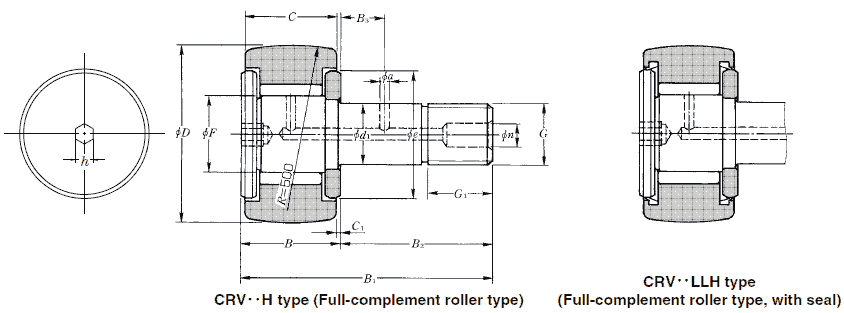

CRV..LLH type inch series cam followers
- Stud diameter
- 6.350 mm
- Outside diameter
- 15.875 mm
- Total width
- 31.800 mm
- Width, ourter ring
- 11.112 mm
- Cr
- 6200 N
- C0r
- 8700 N
- Limiting speed
- 15000 r/min
- Net weight
- 0.022 kg
- Measurement system
- Inch
- Number of rows
- 1
- Sealing
- Sealed type
- Cage
- Without
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned outer ring
- Bearing material
- Steel
- Rolling material
- Steel
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for NTN CRV10-1LLH/3AS
| Bearing number | CRV10-1LLH/3AS | |
|---|---|---|
| Brand | NTN | |
| Type | CRV..LLH type inch series cam followers | |
| D | 15.875 | Dimensions mm |
| d1 | 6.35 | |
| C | 11.112 | |
| F | 8.11 | |
| B | 12.7 | |
| B1 | 31.8 | |
| B2 | 19.1 | |
| G | 1/4-28UNF | |
| G1 | 7.9 | |
| B3 | - | |
| C1 | 0.8 | |
| n | - | |
| a | - | |
| e | 12.5 | |
| h | 1/8 in | |
| Cr | 6200N | Basic dynamic load rating |
| C0r | 8700 N | Basic static load rating |
| 1080 N | Track load capacity | |
| 4 N.m | Maximum tightening torque | |
| Limiting speed | 12000 r/min | Grease lubrication |
| 15000 r/min | Oil lubrication | |
| Mass | 0.022 kg | (approx.) |
IKO CRV10-1LLH/3AS is inch series full-complement cam follower; Outer ring outer diameter: 15.875 mm.
