NTN 22308EAD1 bearings
22308EAD1, NTN spherical roller bearing
- Measurement system
- Metric
- Bore diameter
- 40.000 mm
- Outside diameter
- 90.000 mm
- Width
- 33.000 mm
- Cr
- 169000 N
- C0r
- 152000 N
- Limiting speed
- 6600 r/min
- Net weight
- 1.02 kg
- Number of rows
- 2
- Sealing
- Without
- Cage
- Steel sheet
- Bore type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Relubrication feature
- With
In stock
Technical specification for NTN 22308EAD1
| Bearing number | 22308EAD1 | |
|---|---|---|
| Brand | NTN | |
| Type | Spherical roller bearings have an outer ring oil inlets and oil grooves | |

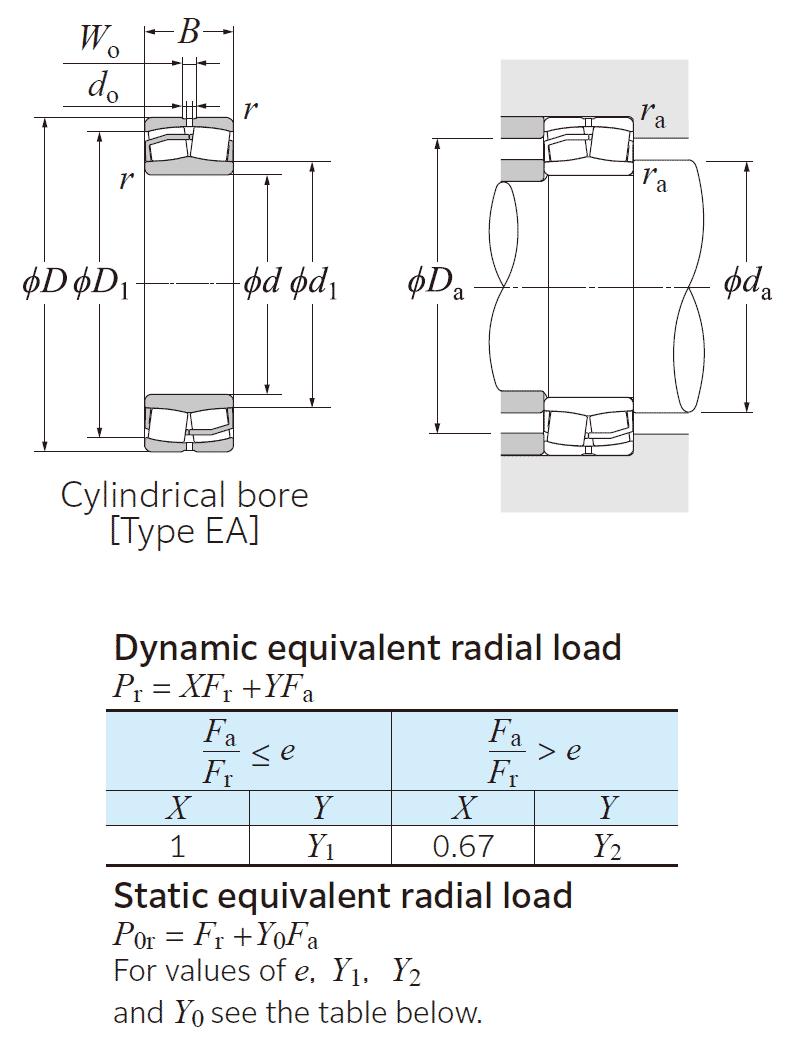

| d | 40 mm | Boundary dimensions |
| D | 90 mm | |
| B | 33 mm | |
| rs min. | 1.5 mm | |
| Wo | 6 mm | |
| do | 3 mm | |
| Cr | 169 kN | Basic dynamic load rating |
| C0r | 152 kN | Basic static load rating |
| Cu | 9.36 kN | Fatigue load limit |
| Allowable speed | 5400 min-1 | Grease lubrication |
| 6600 min-1 | Oil lubrication | |
| d1 | 52 mm | Installation-related dimensions |
| da min. | 49 mm | |
| Da max. | 81 mm | |
| D1 | 78 mm | |
| ras max. | 1.5 mm | |
| e | 0.36 | Constant |
| Y1 | 1.87 | Axial load factors |
| Y2 | 2.79 | |
| Y0 | 1.83 | |
| Mass | 1.02 kg | (approx.) |
NTN 22308EAD1 spherical roller bearing consist of an outer ring having a continuous spherical raceway and two rows of barrel-shaped rollers guided by an inner ring with two raceways. 22308EAD1 has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft bending.
NTN 22308EAD1 bearings have outer ring oil inlets and oil grooves. The allowable speed specified in the bearing dimension table is the limit for heat dissipation and satisfactory lubrication conditions before 22308EAD1 bearing is adversely affected.
