NTN 22230EMKD1 bearings
22230EMKD1, NTN spherical roller bearing, tapered bore
- Measurement system
- Metric
- Bore diameter
- 150.000 mm
- Outside diameter
- 270.000 mm
- Width
- 73.000 mm
- Cr
- 1080000 N
- C0r
- 1220000 N
- Limiting speed
- 2300 r/min
- Net weight
- 18 kg
- Number of rows
- 2
- Sealing
- Without
- Cage
- Machined brass
- Bore type
- Tapered
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Relubrication feature
- With
In stock

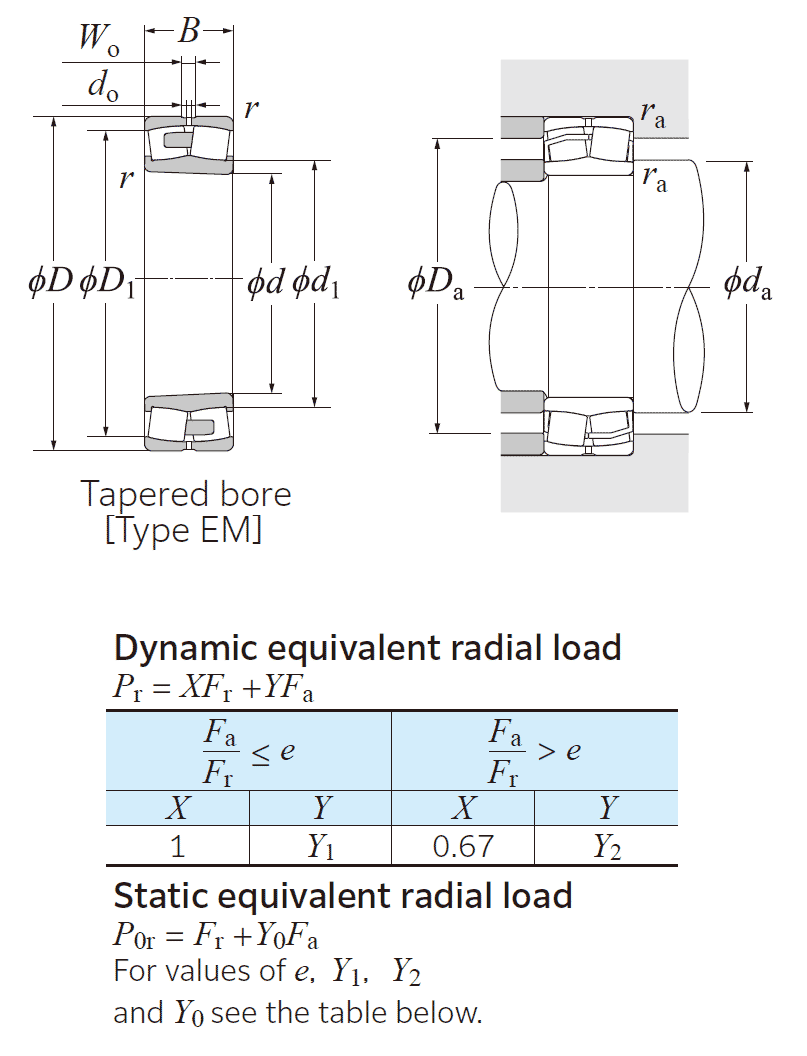

Technical specification for NTN 22230EMKD1
| Bearing number | 22230EMKD1 | |
|---|---|---|
| Brand | NTN | |
| Type | Spherical roller bearings Tapered bore have an outer ring oil inlets and oil grooves | |
| d | 150 mm | Boundary dimensions |
| D | 270 mm | |
| B | 73 mm | |
| rs min. | 3 mm | |
| Wo | 15 mm | |
| do | 7 mm | |
| Cr | 1080 kN | Basic dynamic load rating |
| C0r | 1220 kN | Basic static load rating |
| Cu | 74.4 kN | Fatigue load limit |
| Allowable speed | 1800 min-1 | Grease lubrication |
| 2300 min-1 | Oil lubrication | |
| d1 | 177 mm | Installation-related dimensions |
| da min. | 164 mm | |
| Da max. | 256 mm | |
| D1 | 242 mm | |
| ras max. | 3 mm | |
| e | 0.25 | Constant |
| Y1 | 2.74 | Axial load factors |
| Y2 | 4.08 | |
| Y0 | 2.68 | |
| Mass | 18 kg | (approx.) |
NTN 22230EMKD1 spherical roller bearing consist of an outer ring having a continuous spherical raceway and two rows of barrel-shaped rollers guided by an inner ring with two raceways. 22230EMKD1 has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft bending.
NTN 22230EMKD1 bearings have outer ring oil inlets and oil grooves. The allowable speed specified in the bearing dimension table is the limit for heat dissipation and satisfactory lubrication conditions before 22230EMKD1 bearing is adversely affected.
