NTN 22208EAKD1 bearings
22208EAKD1, NTN spherical roller bearing, tapered bore
- Measurement system
- Metric
- Bore diameter
- 40.000 mm
- Outside diameter
- 80.000 mm
- Width
- 23.000 mm
- Cr
- 116000 N
- C0r
- 105000 N
- Limiting speed
- 8500 r/min
- Net weight
- 0.528 kg
- Number of rows
- 2
- Sealing
- Without
- Cage
- Steel sheet
- Bore type
- Tapered
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Relubrication feature
- With
In stock
Technical specification for NTN 22208EAKD1
| Bearing number | 22208EAKD1 | |
|---|---|---|
| Brand | NTN | |
| Type | Spherical roller bearings Tapered bore have an outer ring oil inlets and oil grooves | |

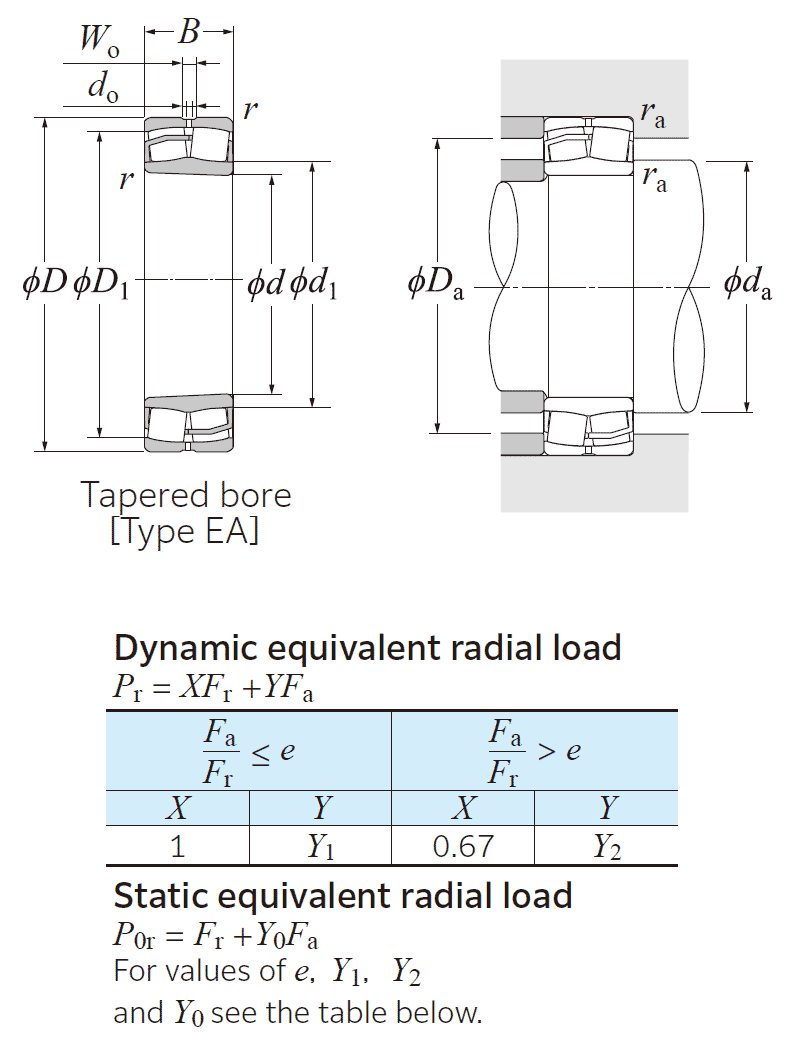

| d | 40 mm | Boundary dimensions |
| D | 80 mm | |
| B | 23 mm | |
| rs min. | 1.1 mm | |
| Wo | 5 mm | |
| do | 2.5 mm | |
| Cr | 116 kN | Basic dynamic load rating |
| C0r | 105 kN | Basic static load rating |
| Cu | 7.78 kN | Fatigue load limit |
| Allowable speed | 6800 min-1 | Grease lubrication |
| 8500 min-1 | Oil lubrication | |
| d1 | 50 mm | Installation-related dimensions |
| da min. | 47 mm | |
| Da max. | 73 mm | |
| D1 | 71 mm | |
| ras max. | 1.1 mm | |
| e | 0.27 | Constant |
| Y1 | 2.47 | Axial load factors |
| Y2 | 3.67 | |
| Y0 | 2.41 | |
| Mass | 0.528 kg | (approx.) |
NTN 22208EAKD1 spherical roller bearing consist of an outer ring having a continuous spherical raceway and two rows of barrel-shaped rollers guided by an inner ring with two raceways. 22208EAKD1 has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft bending.
NTN 22208EAKD1 bearings have outer ring oil inlets and oil grooves. The allowable speed specified in the bearing dimension table is the limit for heat dissipation and satisfactory lubrication conditions before 22208EAKD1 bearing is adversely affected.
