NTN KXJ110LL bearings
KXJ110LL, NTN Ultra-Thin section ball bearings with double-seal, 4-point contact type
- Measurement system
- Inch
- Bore diameter
- 279.400 mm
- Outside diameter
- 298.450 mm
- Width
- 12.700 mm
- Cr
- 14100 N
- C0r
- 26800 N
- Net weight
- 0.648 kg
- Number of rows
- 1
- Contact angle deg
- 30
- Sealing
- With
- Cage
- Brass
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
In stock
Technical specification for NTN KXJ110LL

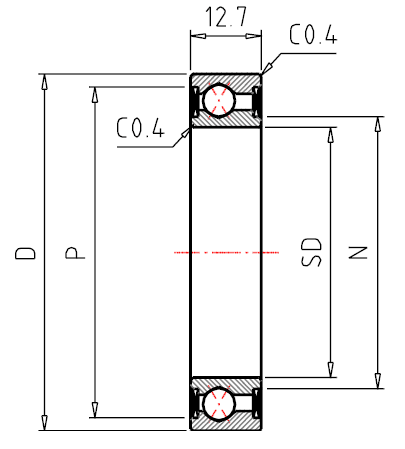

| Bearing number | KXJ110LL | |
|---|---|---|
| Brand | NTN | |
| Type | Ultra-Thin Section Type Ball bearing With Double-seal, 4-point contact type | |
| d | 279.4 mm | Boundary dimensions |
| D | 298.45 mm | |
| B | 12.7 mm | |
| C | 0.4 mm | |
| Cr | 14.1 kN | Basic dynamic load rating, Radial |
| C0r | 26.8 kN | Basic static load rating, Radial |
| Ca | 18.6 kN | Basic dynamic load rating, Axial |
| C0a | 81.5 kN | Basic static load rating, Axial |
| Cu | 1.72 kN | Fatigue load limit |
| N | 283.3 mm | Reference dimensions |
| P | 293.7 mm | |
| Mass | 0.648 kg | (approx.) |
NTN KXJ110LL ultra-thin section type ball bearings are bearings with an extremely thin design. KXJ110LL have seals on both sides
