NTN KRA110 bearings
KRA110, NTN Ultra-Thin section ball bearings, Radial type
- Measurement system
- Inch
- Bore diameter
- 279.400 mm
- Outside diameter
- 292.100 mm
- Width
- 6.350 mm
- Cr
- 8100 N
- C0r
- 20300 N
- Net weight
- 0.236 kg
- Number of rows
- 1
- Sealing
- Without
- Cage
- Brass
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Without
In stock
Technical specification for NTN KRA110
| Bearing number | KRA110 | |
|---|---|---|
| Brand | NTN | |
| Type | Ultra-Thin Section Type Ball bearing, Radial type | |

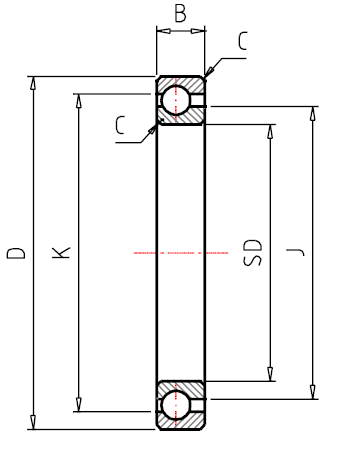

| d | 279.4 mm | Boundary dimensions |
| D | 292.1 mm | |
| B | 6.35 mm | |
| C | 0.6 mm | |
| Cr | 8.1 kN | Basic dynamic load rating |
| C0r | 20.3 kN | Basic static load rating |
| Cu | 0.52 kN | Fatigue load limit |
| J | 284.1 mm | Reference dimensions |
| K | 287.4 mm | |
| Mass | 0.236 kg | (approx.) |
NTN KRA110 ultra-thin section type ball bearings are bearings with an extremely thin design. KRA110 is radial type, which allowing to support radial and axila loads in either directions as well as the complex loads.
