NSK 23126CAMKE4 bearings

23126CAMKE4, NSK, Spherical roller bearing with tapered bore

Measurement system: Metric
Bore diameter: 130.000 mm
Outside diameter: 210.000 mm
Width: 64.000 mm
Cr: 630000 N
C0r: 825000 N
Limiting speed: 1700 r/min
Net weight: 8.69 kg
Number of rows: 2
Sealing: Without
Locating feature: Without
Cage: Machined brass
Bore type: Tapered
Bearing material: Steel
Rolling material: Steel
Tolerance class: Normal (PN)
Internal clearance: CN
Lubricant in bearing: None
Relubrication feature: With

In stock

Technical specification for NSK 23126CAMKE4

NSK 23126CAMKE4

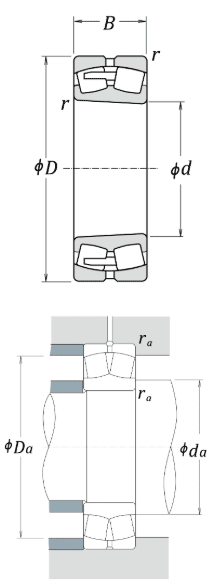

Boundary Dimensions
NSK Designation	23126CAMKE4
d	130 mm	Bore diameter
D	210 mm	Outside diameter
B	64 mm	Width
r (min.)	2 mm	Chamfer dimension
Basic Load Ratings
Cr	630000 N	Basic dynamic load rating
C0r	825000 N	Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)	2600 r/min	Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease	1300 r/min	Grease lubrication
Oil (Oil-bath)	1700 r/min	Oil-bath lubrication
Abutment and Fillet Dimensions
da min.	140 mm	Diameter of shaft abutment
Da min.	184 mm	Diameter of housing abutment
Da max.	200 mm	Diameter of housing abutment
ra max.	2 mm	Radius of shaft or housing fillet
Calculation factors
e	0.28	Constant
Y2	3.6	Axial load Factors
Y3	2.4	Axial load Factors
Y0	2.4	Axial load Factors
Mass
Mass (approx.)	8.69 kg

NSK 23126CAMKE4 spherical roller bearing is designed for high load capacity. 23126CAMKE4 bearing have machined brass cage, and the inner ring is tapered bore 1:12. An oil groove and holes are privided in the outer ring so supply lubricant. Boundary dimensions: 130 x 210 x 64 mm.
