NSK 21306CDE4 bearings
21306CDE4, NSK, Spherical roller bearings
- Measurement system
- Metric
- Bore diameter
- 30.000 mm
- Outside diameter
- 72.000 mm
- Width
- 19.000 mm
- Cr
- 55000 N
- C0r
- 54000 N
- Limiting speed
- 6000 r/min
- Net weight
- 0.39 kg
- Number of rows
- 2
- Sealing
- Without
- Locating feature
- Without
- Cage
- Steel sheet metal
- Bore type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- With
In stock
Technical specification for NSK 21306CDE4
| NSK Designation | 21306CDE4 | |
|---|---|---|

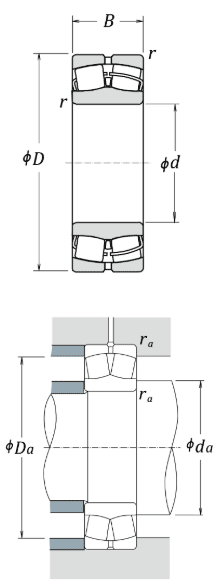

| Boundary Dimensions | ||
| d | 30 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| B | 19 mm | Width |
| r (min.) | 1.1 mm | Chamfer dimension |
| Basic Load Ratings | ||
| Cr | 55000 N | Basic dynamic load rating |
| C0r | 54000 N | Basic static load rating |
| Speeds | ||
| Thermal Speed Rating (Oil-bath) | 7500 r/min | Oil-bath lubrication subject to conditions outlined in ISO 15312 |
| Grease | 4500 r/min | Grease lubrication |
| Oil (Oil-bath) | 6000 r/min | Oil-bath lubrication |
| Abutment and Fillet Dimensions | ||
| da min. | 37 mm | Diameter of shaft abutment |
| da max. | 40 mm | Diameter of shaft abutment |
| Da min. | 59 mm | Diameter of housing abutment |
| Da max. | 65 mm | Diameter of housing abutment |
| ra max. | 1 mm | Radius of shaft or housing fillet |
| Calculation factors | ||
| e | 0.28 | Constant |
| Y2 | 3.6 | Axial load Factors |
| Y3 | 2.4 | Axial load Factors |
| Y0 | 2.3 | Axial load Factors |
| Mass | ||
| Mass (approx.) | 0.39 kg | |
NSK 21306CDE4 spherical roller bearing is designed for high load capacity. 21306CDE4 bearing have pressed steel cage. An oil groove and holes are privided in the outer ring so supply lubricant. Boundary dimensions: 30 x 72 x 19 mm.
